Rear Floor Assembly Preparation - Ar64.20-P-1300-02LWE

Model 213.0/2, 290

Model 213.1 except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))

The next steps are shown on model 213.0.

The higher-level service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

1. Model 213.0/1

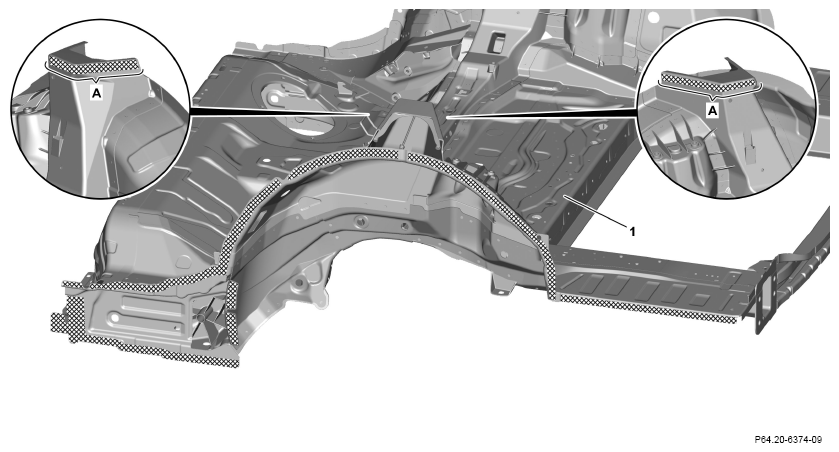

   Sand down mating surfaces on rear-end floor (1) to bare metal in cross-hatched areas (areas A).

2. Grind mating surfaces on rear-end floor (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

3. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

4. Model 213.0/1

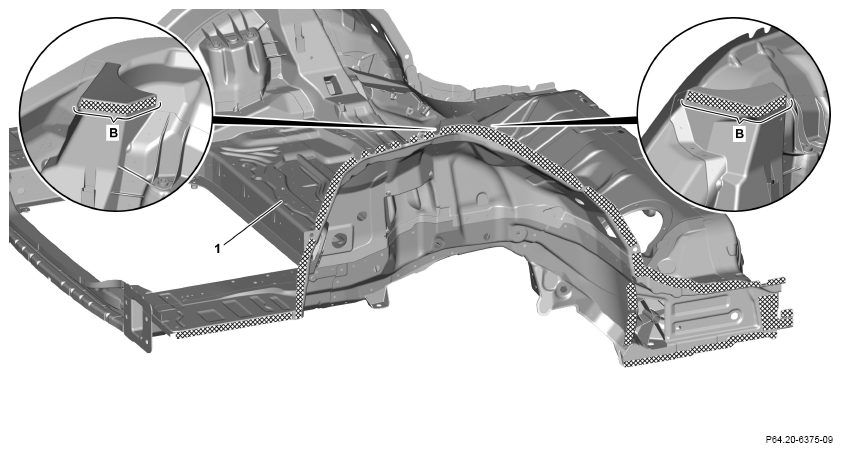

   Sand down mating surfaces on rear-end floor (1) to bare metal in cross-hatched areas (areas B).

5. Grind mating surfaces on rear-end floor (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

6. Remove grinding dust.

   Observe pretreatment of bonding surfaces.

   Courtesy of MERCEDES-BENZ USA

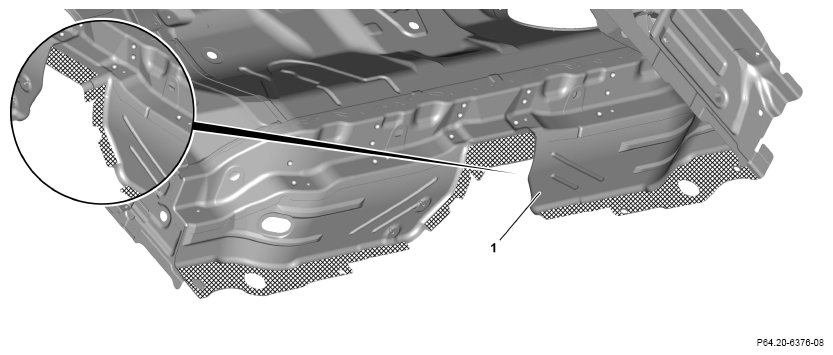

7. Grind mating surfaces on rear-end floor (1) down to bare metal in crosshatched areas.
8. Remove grinding dust.

   Observe pretreatment of bonding surfaces.
