Remove/Install Roller Sun Blind Motor For Panoramic Roof - AR77.21-P-0491FRX
Model 290 with code 416 (Panoramic sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Loosen roof lining from roof and put down in vehicle interior. | AR68.30-P-4300FRX | |
| 2 | Release electrical connector (1) and disconnect. | ||

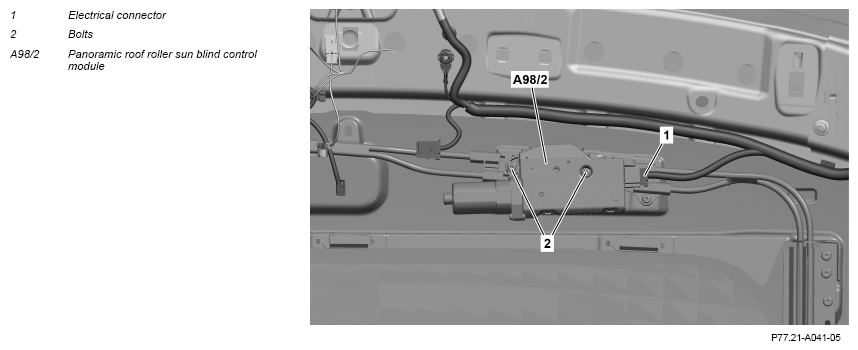

| 3 | Remove screws (2) and remove panoramic roof roller sunblind control module (A98/2). | ||
| 4 | Install in the reverse order. | ||
| 5 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06FR | |||
| Normalizing | |||
| 6 | Normalize roller sunblind with diagnostic system and perform teach-in run for automatic reversing function. | ||
| AD00.00-P-2000-06FR |
