Remove/Install Spare Tire Well Panel - AR68.30-P-4620FRX
Model 290

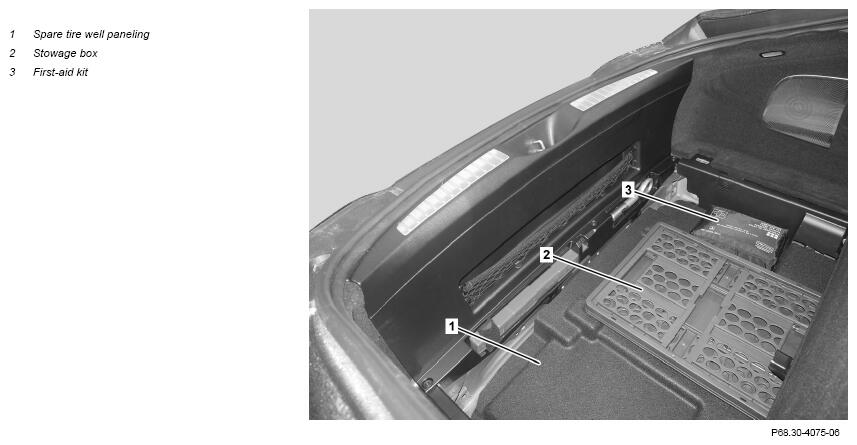

Shown with code 30P (Stowage Space Package)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Fold up load compartment floor and fix in place. | ||
| 2 | Remove stowage box (2). | Model 290 with code 30P (Stowage Space package) |
|
| 3 | Remove first-aid kit (3). | ||
| 4 | Remove spare wheel well trim (1). | ||
| 5 | Install in the reverse order. |
