Remove/Install Partition Wall - AR68.74-P-0651FRX

Model 290 except code 287 (Through-loading feature)

G16555962

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install

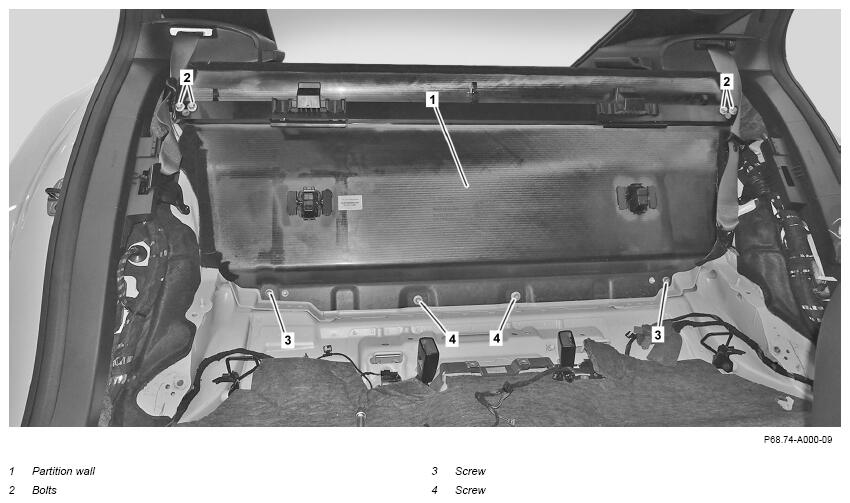

1	Remove seat backrest in rear.		AR91.12-P-1713FR
2	Unscrew bolts (2).	Screw/bolt, partition wall to body	*BA68.74-P-1003-01G
3	Remove screw/bolts (3).	Screw, partition to outer rear-end floor	*BA68.74-P-1001-01G
4	Unscrew screw/bolts (4).	Screw, partition to inner rear-end floor	*BA68.74-P-1002-01G
5	Remove partition (1).
6	Install in the reverse order

PARTITION WALL

Number	Designation		Model 290
BA68.74-P-1001-01G	Screw, partition to outer rear-end floor	Nm	23

PARTITION WALL

Number	Designation		Model 290
BA68.74-P-1002-01G	Screw, partition to inner rear-end floor	Nm	35

PARTITION WALL

Number	Designation		Model 290
BA68.74-P-1003-01G	Screw/bolt, partition wall to body	Nm	35
