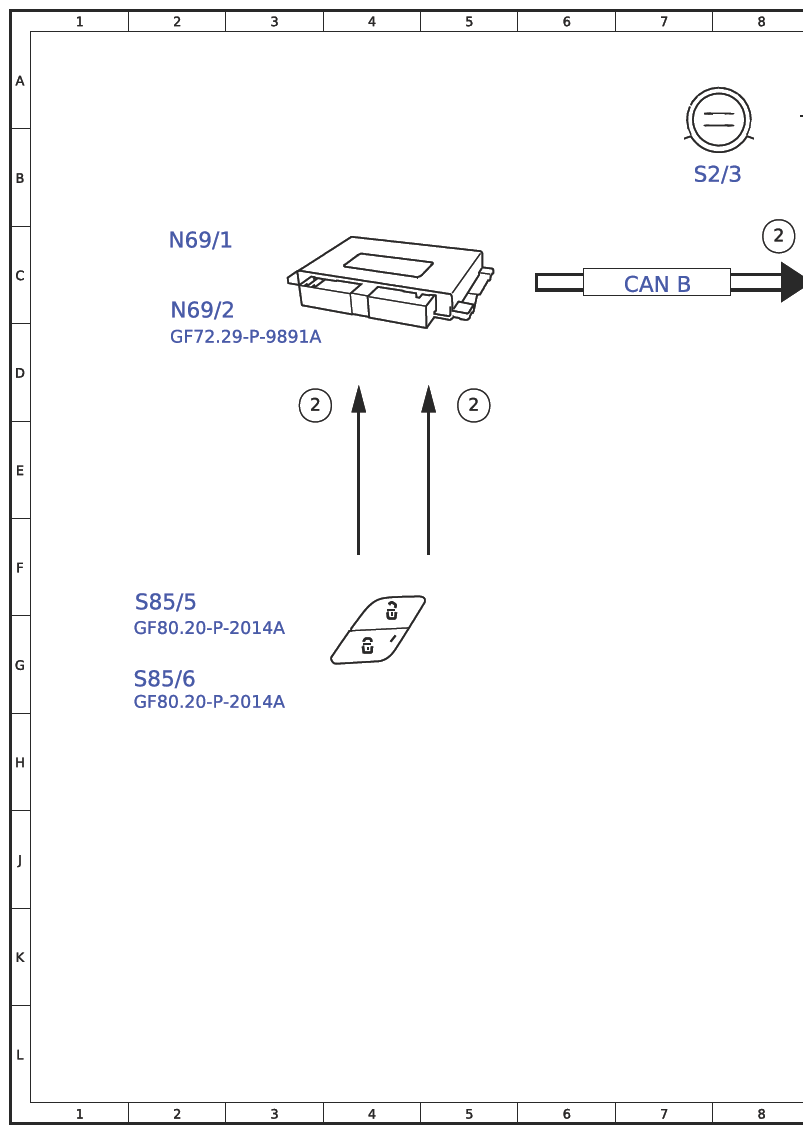

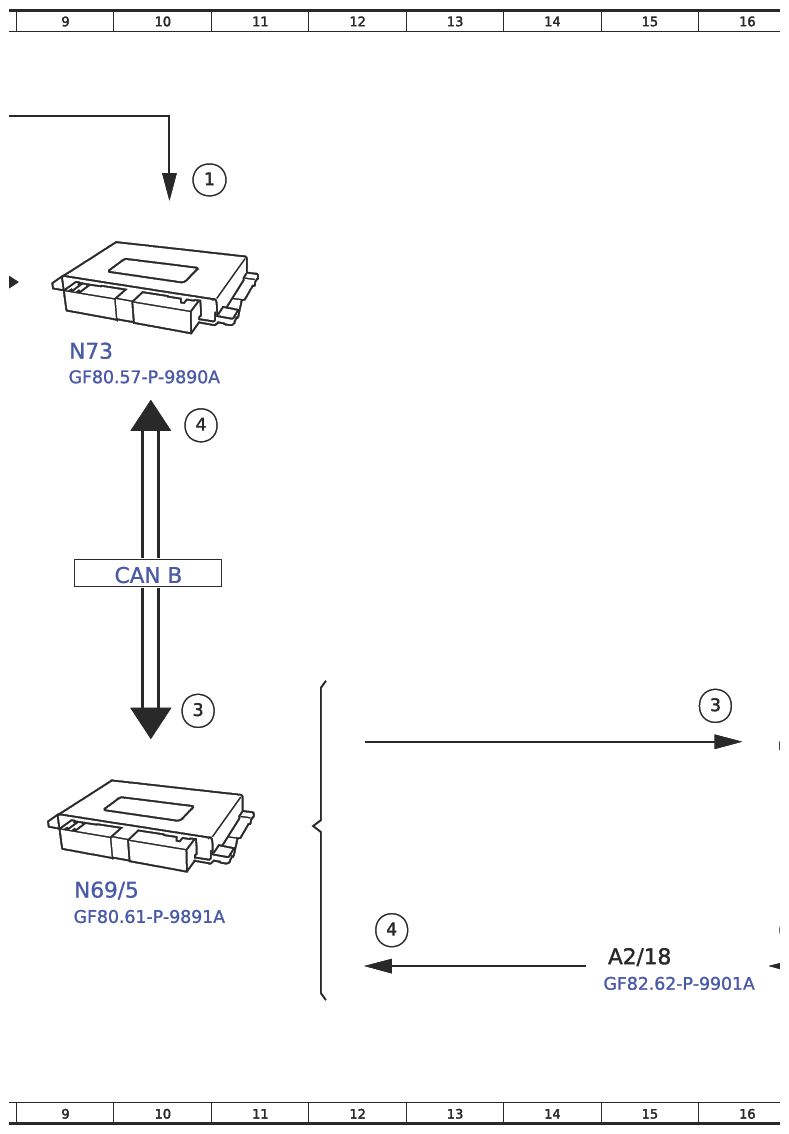

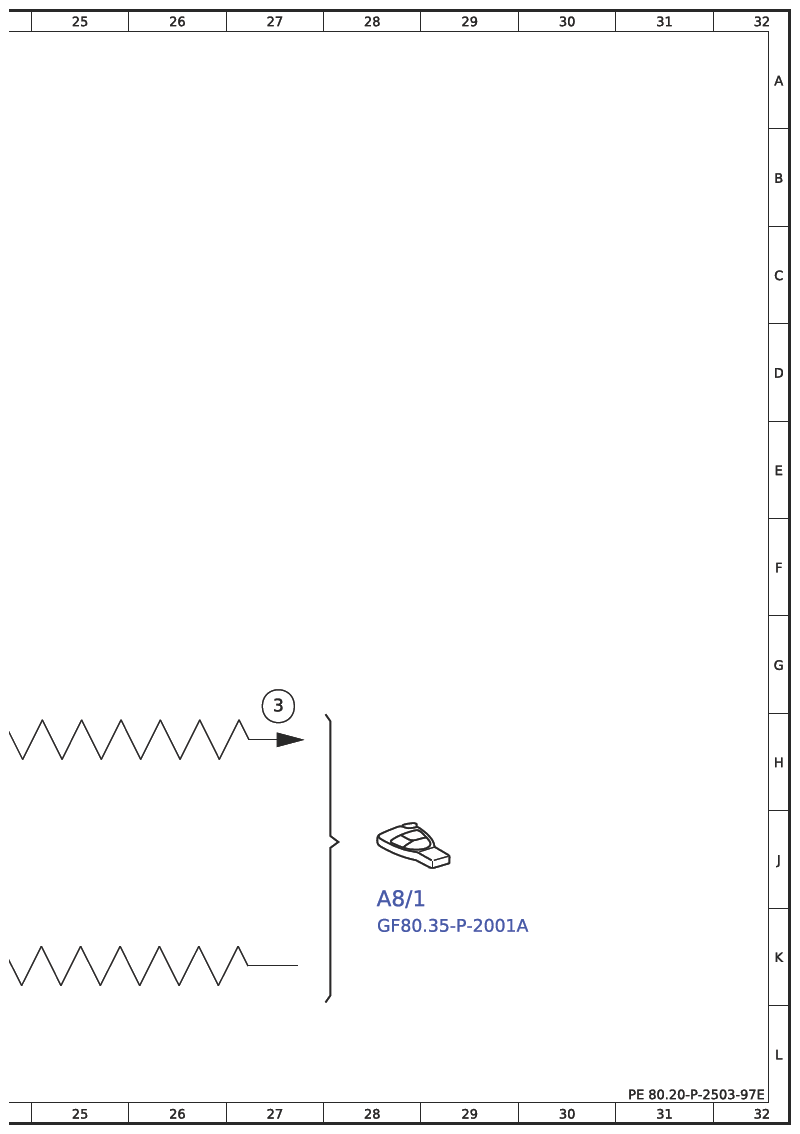

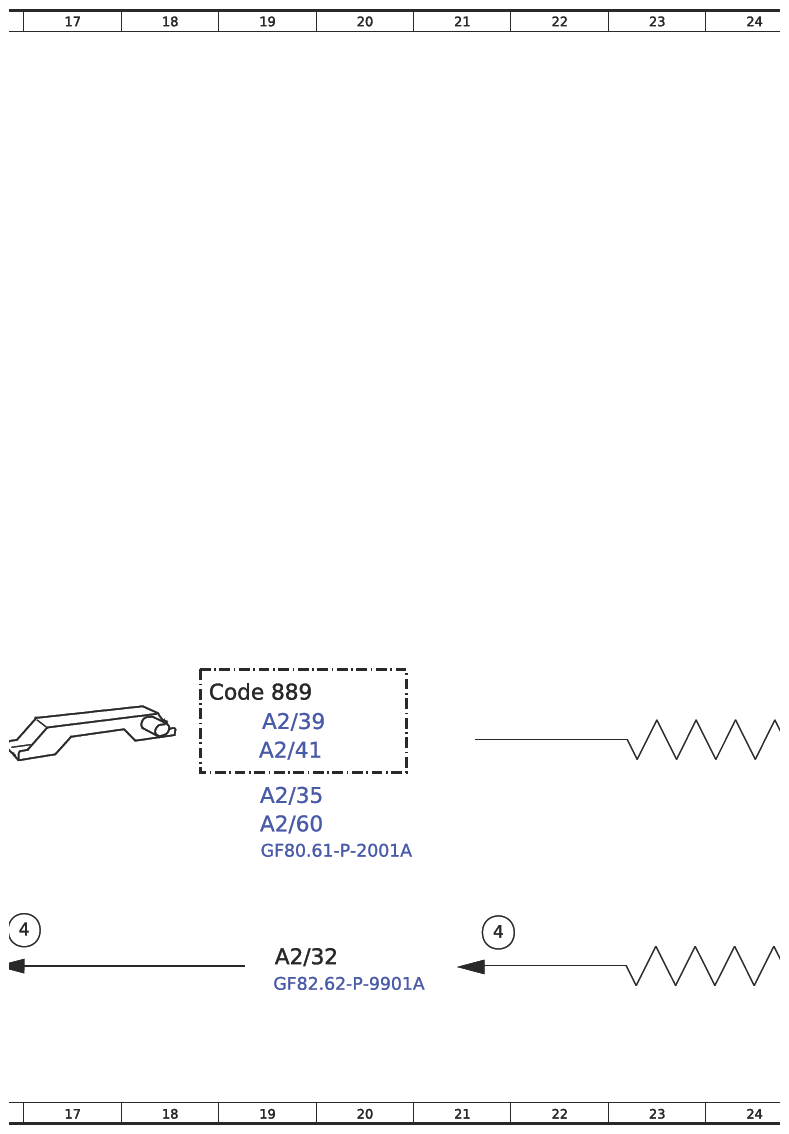

Function Schematic For Detection Of Transmitter Key Position - PE80.20-P-2503-97E
Model 213, 238, 257, 290
as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine start, request | 11B |
| 2 | Unlock/unlock, request | 3D |
| 2 | Central locking de-A/lock, request | 5D |
| 2 | Central locking de-A/lock, request | 8C |
| 3 | Identification, request | 10G |
| 3 | Identification, request | 16G |
| 3 | Identification, request | 27G |
| 4 | Access authorization code, signal | 10E |
| 4 | Access authorization code, signal | 12K |
| 4 | Access authorization code, signal | 17K |
| 4 | Access authorization code, signal | 21K |
| A2/35 | Antenna KEYLESS-GO trunk | 19H |
| A2/39 | Antenna KEYLESS-GO Rear door left | 19H |
| A2/41 | Antenna KEYLESS-GO Rear door right | 19H |
| A2/60 | Antenna KEYLESS-GO center console | 19J |
| A8/1 | Sender key | 28J |
| CAN B | Interior-CAN | 10F |
| CAN B | Interior-CAN | 7C |
| Code 889 | KEYLESS-GO | 18G |
| N69/1 | Front door control unit left | 2C |
| N69/2 | Right Front Door Control Unit | 2C |
| N69/5 | Control unit KEYLESS-GO | 9J |
| N73 | Electronic ignition switch control unit | 9D |
| S2/3 | Start-stop button KEYLESS-GO | 7B |
| S85/5 | Switch Internal Central Locking Front Door Left | 2F |
| S85/6 | Switch internal central locking front door right | 2G |
