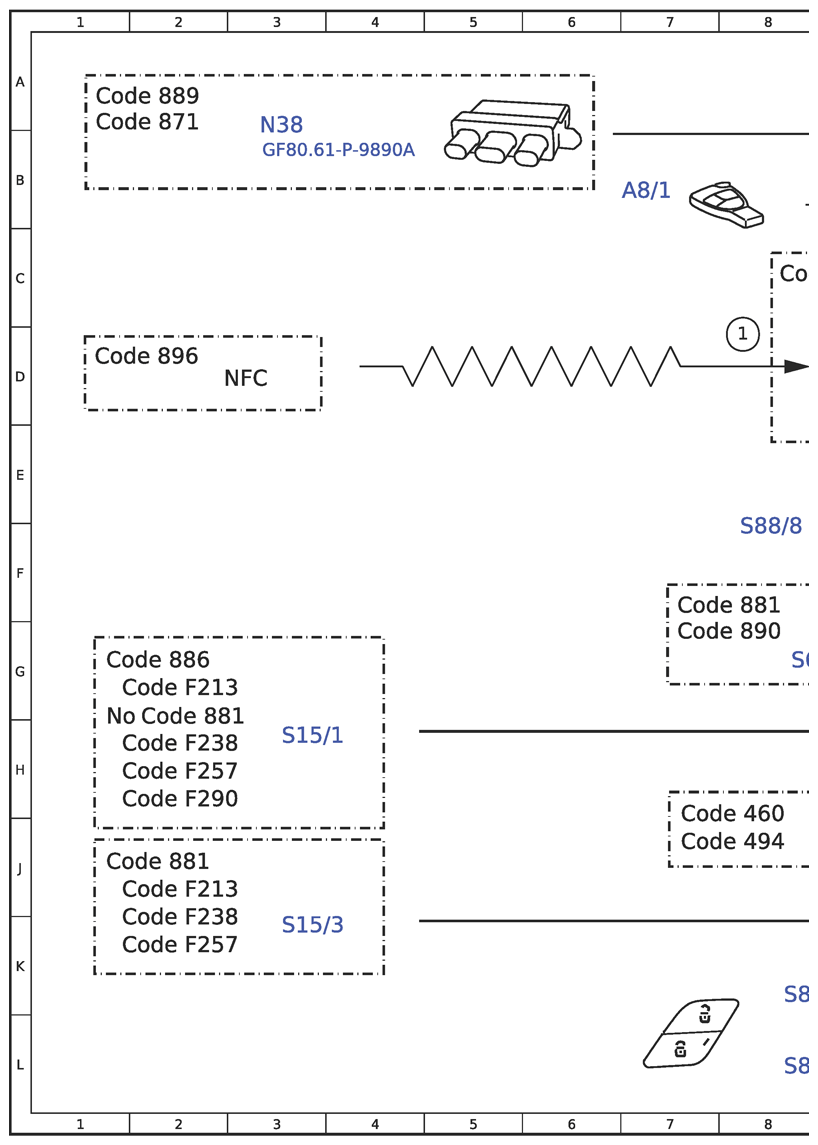

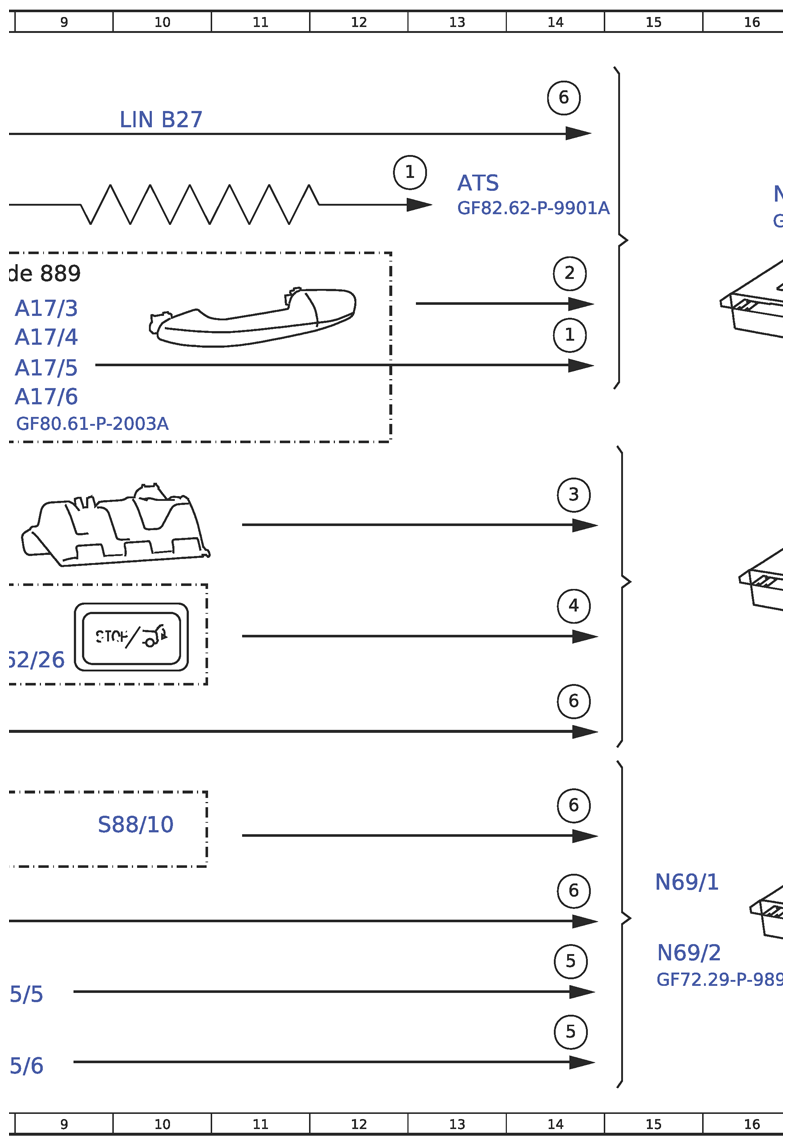

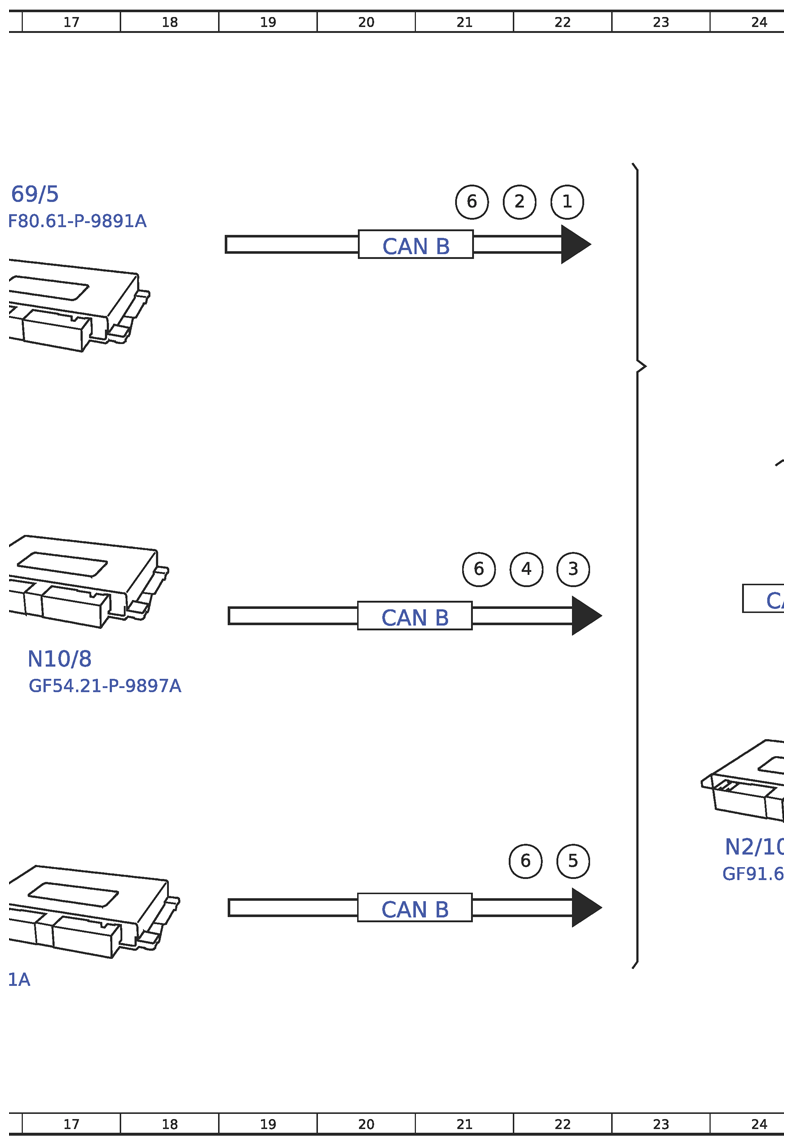

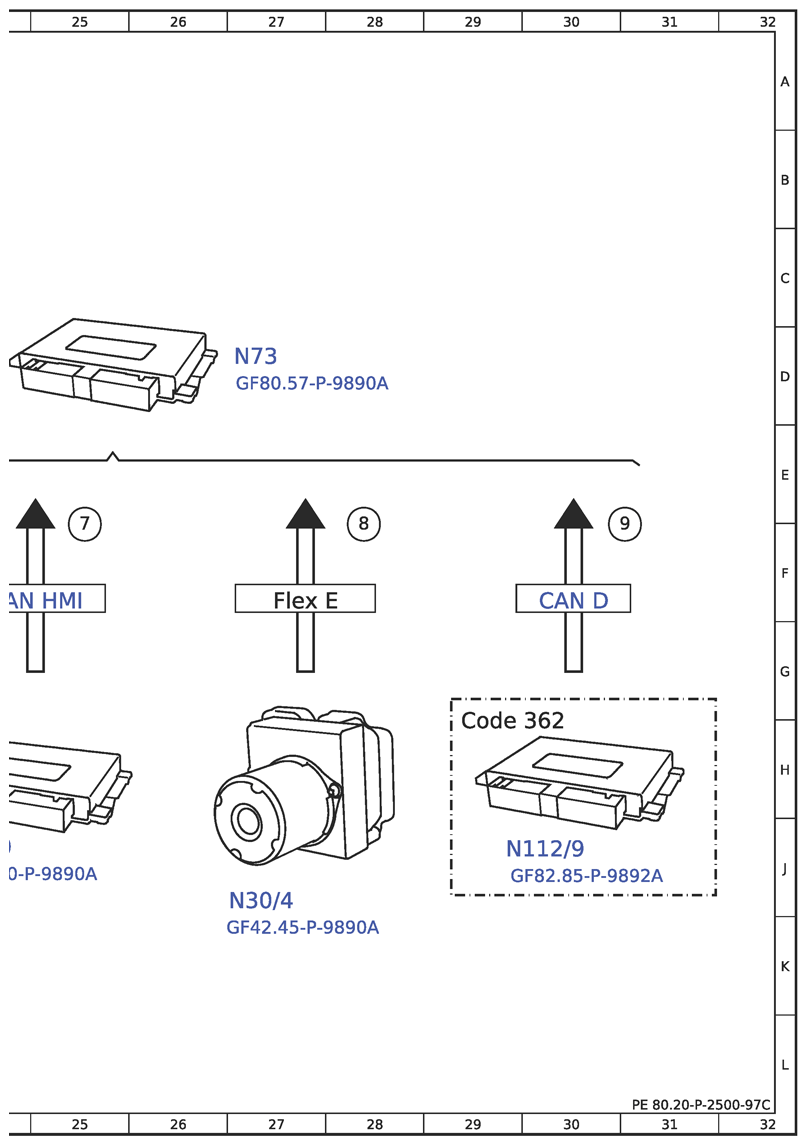

Function Schematic For Central Locking System Activation - PE80.20-P-2500-97C
Model 213, 238, 257, 290
as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Access authorization code, Signal | 12B |
| 1 | Access authorization code, Signal | 8D |
| 1 | Access authorization code, Signal | 14D |
| 1 | Access authorization code, Signal | 22B |
| 2 | Door handle KEYLESS-GO, status | 14C |
| 2 | Door handle KEYLESS-GO, status | 22B |
| 3 | Switch to operate trunk lid/tailgate, status | 14E |
| 3 | Switch to operate trunk lid/tailgate, status | 22F |
| 4 | Button trunk lid/tailgate control, status | 14F |
| 4 | Button trunk lid/tailgate control, status | 22F |
| 5 | Switch internal central locking front door, status | 14L |
| 5 | Switch internal central locking front door, status | 14K |
| 5 | Switch internal central locking front door, status | 22J |
| 6 | Open trunk lid/tailgate, request | 14A |
| 6 | Open trunk lid/tailgate, request | 14J |
| 6 | Open trunk lid/tailgate, request | 14H |
| 6 | Open trunk lid/tailgate, request | 14G |
| 6 | Open trunk lid/tailgate, request | 21F |
| 6 | Open trunk lid/tailgate, request | 22J |
| 6 | Open trunk lid/tailgate, request | 21B |
| 7 | Crash, Signal | 25E |
| 8 | Vehicle speed, signal | 28E |
| 9 | Central locking, request | 30E |
| A17/3 | Door handle KEYLESS-GO rear left | 9C |
| A17/4 | Door handle KEYLESS-GO rear right | 9D |
| A17/5 | Door handle KEYLESS-GO driver's door | 9D |
| A17/6 | Door handle KEYLESS-GO passenger door | 9D |
| A8/1 | Sender key | 7B |
| ATS | Antenna system | 13B |
| CAN B | Indoor CAN | 20G |
| CAN B | Indoor CAN | 20K |
| CAN B | Indoor CAN | 20C |
| CAN D | Diagnostic CAN | 30F |
| CAN HMI | User interface-CAN | 24F |
| Code 362 | HERMES LTE | 29H |
| Code 460 | Canada Version | 7J |
| Code 494 | USA version | 7J |
| Code 871 | Sensors for boot lid opening/closing | 1A |
| Code 881 | Trunk lid/tailgate controls | 7F |
| Code 881 | Trunk lid/tailgate controls | 1J |
| Code 881 | Trunk lid/tailgate controls | 2H |
| Code 886 | Remote Lid Opening (HDF) | 1G |
| Code 889 | KEYLESS-GO | 8C |
| Code 889 | KEYLESS-GO | 1A |
| Code 890 | Automatic Back Door | 7G |
| Code 896 | Vehicle access and authorization to drive via mobile phone | 1D |
| Code F213 | Model 213 | 1J |
| Code F213 | Model 213 | 1G |
| Code F238 | Model 238 | 1K |
| Code F238 | Model 238 | 1H |
| Code F257 | Model 257 | 1K |
| Code F257 | Model 257 | 1H |
| Code F290 | Model 290 | 1H |
| Flex E | Chassis-FlexRay | 27F |
| LIN B27 | KEYLESS-GO LIN | 10A |
| N10/8 | Control unit SAM rear | 17G |
| N112/9 | Control unit HERMES | 30J |
| N2/10 | Control Unit Supplemental Restraint System | 24J |
| N30/4 | Electronic Stability Program Control Unit | 27J |
| N38 | Rear Shift Module | 3B |
| N69/1 | Left Front Door Control Unit | 15J |
| N69/2 | Right Front Door Control Unit | 15K |
| N69/5 | Control unit KEYLESS-GO | 16B |
| N73 | Electronic ignition switch control unit | 27D |
| S15/1 | Trunk lid release button | 3H |
| S15/3 | Button trunk lid/tailgate control driver | 3K |
| S62/26 | Trunk lid/tailgate control button | 8G |
| S85/5 | Switch internal central locking front door left | 8K |
| S85/6 | Switch, Internal Central Locking, Front Door, Right | 8L |
| S88/10 | Switch emergency opening trunk lid | 10J |
| S88/8 | Trunk lid/tailgate actuation switch | 8F |
