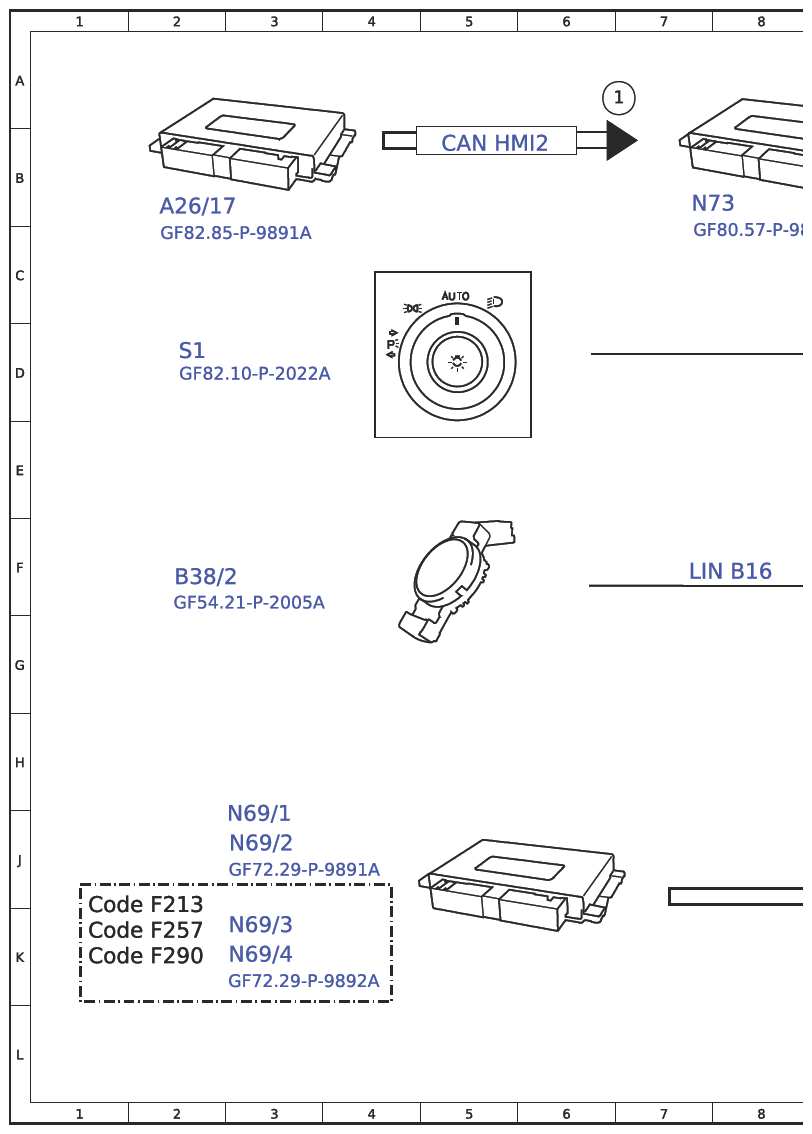

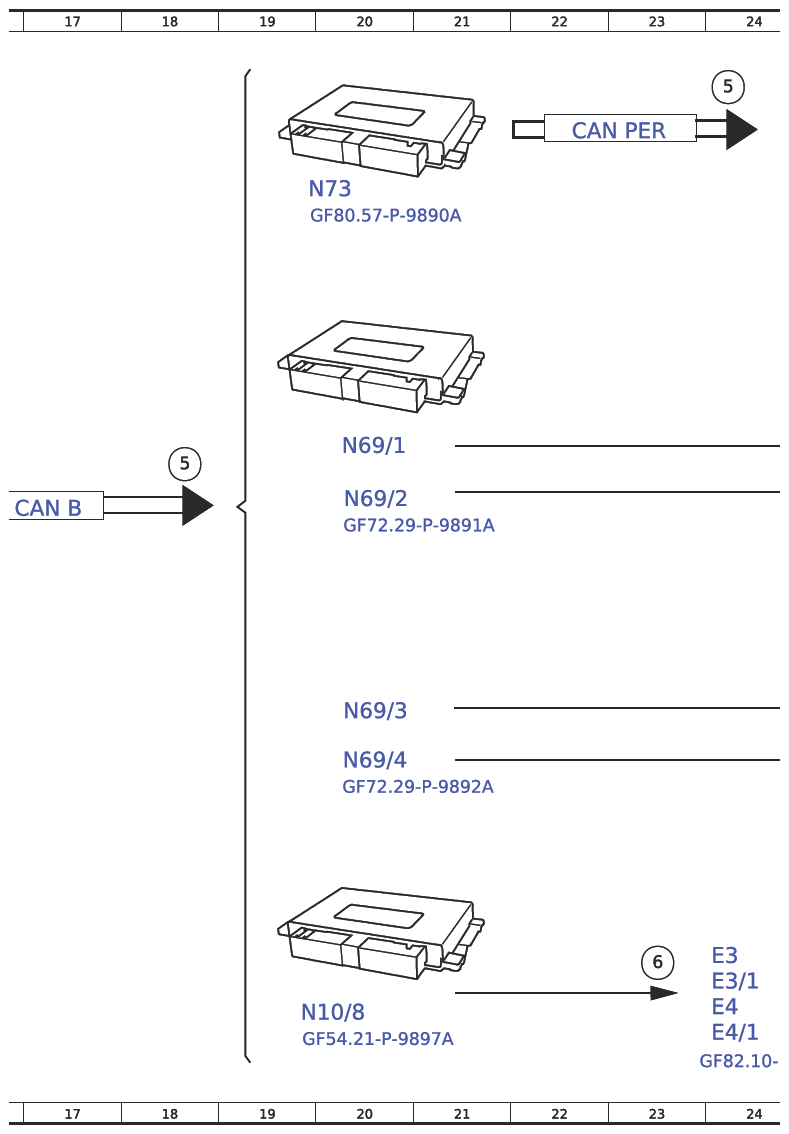

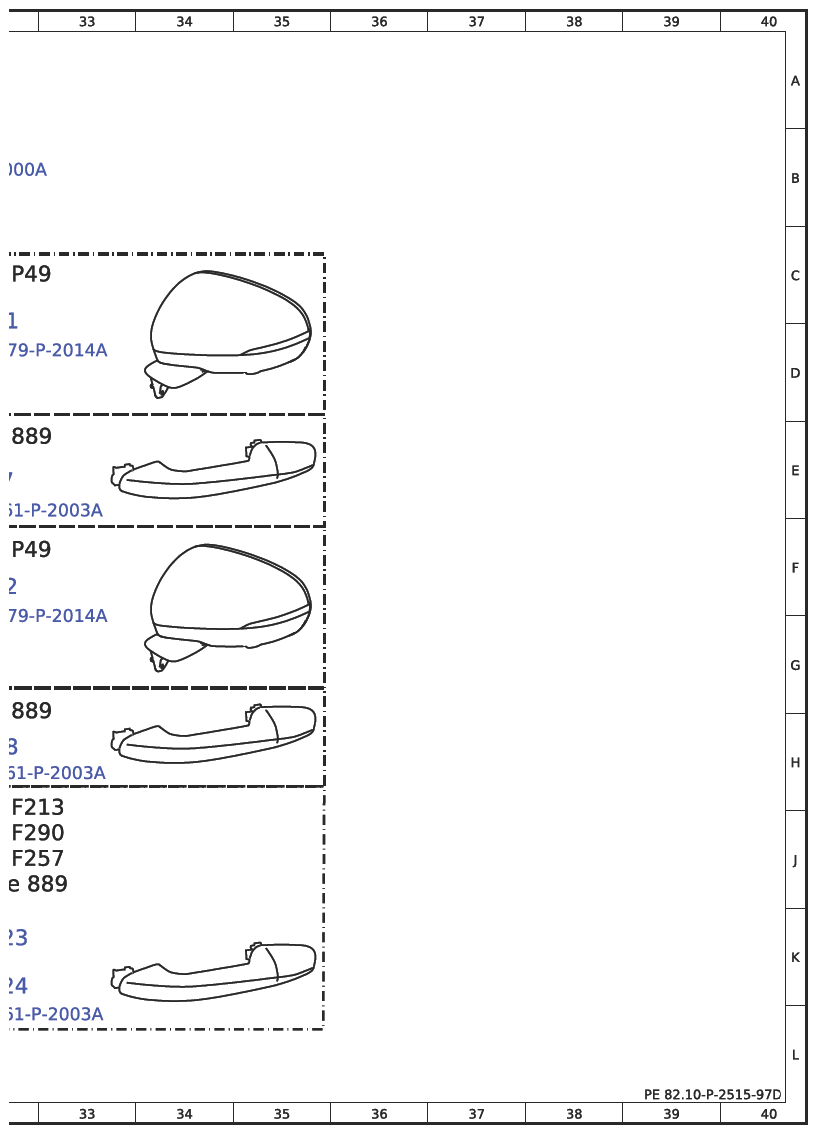

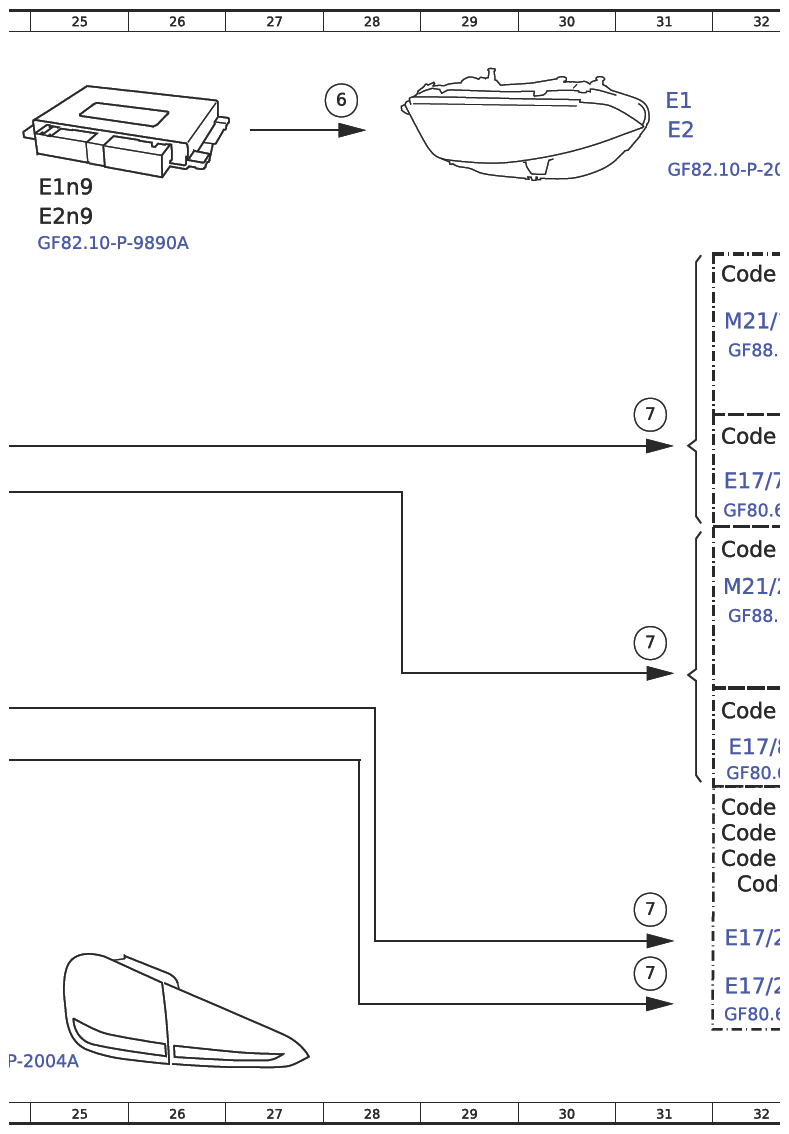

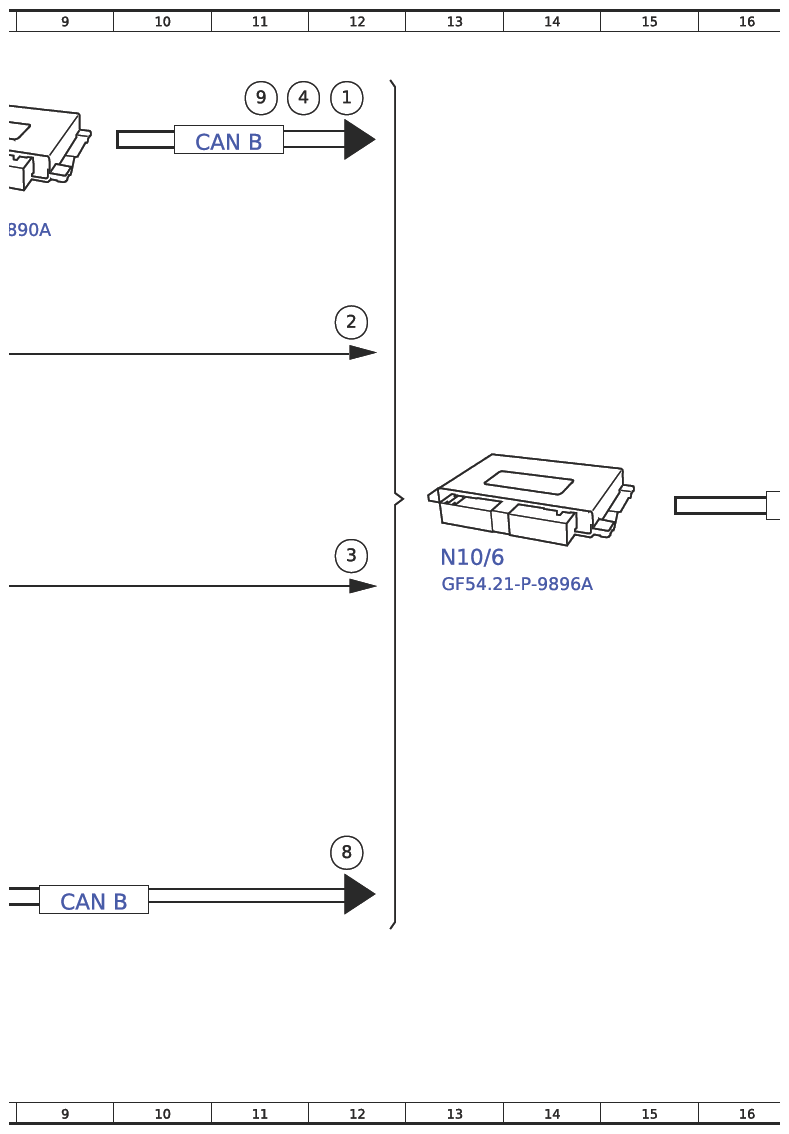

Function Schematic, Illuminate Vehicle Surroundings - PE82.10-P-2515-97D
Model 213, 238, 257, 290 as of model year 2021
| code: | Designation: | position: |
|---|---|---|
| 1 | Function Ambient Lighting, Status | 7A |
| 1 | Function Ambient Lighting, Status | 12A |
| 2 | switch for external lighting, status | 12D |
| 3 | twilight level, signal | 12F |
| 4 | terminal 15, status | 11A |
| 5 | ambient lighting, requirement | 18E |
| 5 | ambient lighting, requirement | 24A |
| 6 | parking light, control | 23K |
| 6 | parking light, control | 28A |
| 7 | ambient luminaire, control | 31K |
| 7 | ambient luminaire, control | 31J |
| 7 | ambient luminaire, control | 31G |
| 8 | switch turn latch door, status | 12J |
| 9 | Central Locking (ZV), Status | 11A |
| A26/17 | Headunit | 2B |
| B38/2 | Rain and light sensor with additional functions | 2F |
| CAN B | Interior CAN | 17E |
| CAN B | Interior CAN | 9K |
| CAN B | Interior CAN | 11B |
| CAN HMI2 | user interface-CAN 2 | 5B |
| CAN PER | peripheral CAN | 22B |
| code 889 | KEYLESS-GO | 32H |
| code 889 | KEYLESS-GO | 32E |
| code 889 | KEYLESS-GO | 32J |
| code F213 | Class 213 | 32J |
| code F213 | Class 213 | 1K |
| code F257 | SERIES 257 | 1K |
| code F257 | SERIES 257 | 32J |
| code F290 | Series 290 | 1K |
| code F290 | Series 290 | 32J |
| code P49 | mirror package | 32F |
| code P49 | mirror package | 32C |
| E1 | front left light unit | 31A |
| E17/23 | door handle lighting on the rear door left | 32K |
| E17/24 | door handle lighting on the right rear door | 32K |
| E17/7 | door handle lighting on the front door left | 32E |
| E17/8 | door handle lighting on the front door right | 32H |
| E1n9 | Headlight control unit left | 25B |
| E2 | front right light unit | 31B |
| E2n9 | right headlight control unit | 25B |
| E3 | Rear Left Light Unit | 24K |
| E3/1 | Rear Left Inner Light Unit | 24K |
| E4 | light unit rear right | 24L |
| E4/1 | light unit rear right inside | 24L |
| LIN B16 | rain and light sensor LIN | 7F |
| M21/1 | Exterior mirrors links | 32D |
| M21/2 | Exterior mirrors right | 32F |
| N10/6 | control unit SAM front | 13F |
| N10/8 | control unit SAM rear | 20L |
| N69/1 | Left Front Door Control Unit | 3J |
| N69/1 | Left Front Door Control Unit | 20E |
| N69/2 | Right Front Door Control Unit | 3J |
| N69/2 | Right Front Door Control Unit | 20E |
| N69/3 | control unit rear door left | 3K |
| N69/3 | control unit rear door left | 20H |
| N69/4 | control unit rear door right | 3K |
| N69/4 | control unit rear door right | 20H |
| N73 | electronic ignition switch control unit | 7B |
| N73 | electronic ignition switch control unit | 20B |
| S1 | switch for outdoor lighting | 2D |
