Remove/Install Woofer - AR82.62-P-7842FRX
Model 290 with code 810 (Premium sound system)
Model 290 with code 811 (High-End sound system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||

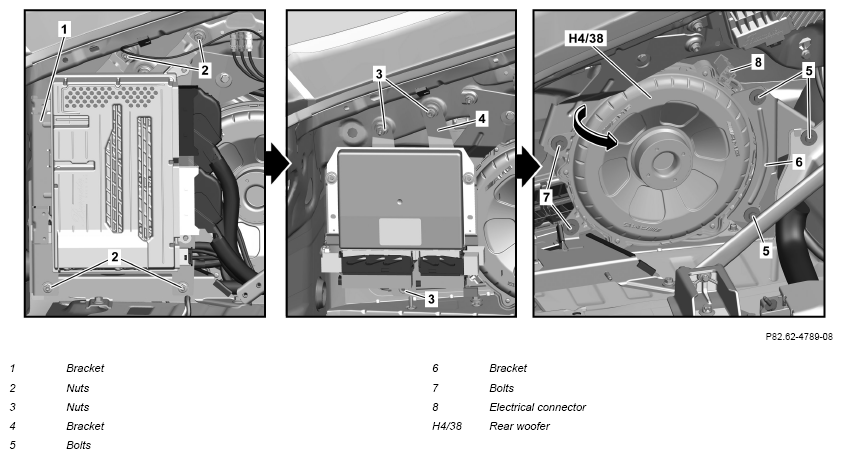

| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove side trim in left load compartment. | AR68.30-P-1185FRX | |
| 3 | Unscrew nuts (2) and set aside holder (1) with control units attached. | ||
| 4 | Unscrew nuts (3) and set aside holder (4) with control units attached. | ||
| 5 | Disconnect electrical connector (8). | ||
| 6 | Remove screws (5) and detach holder (6). | ||
| 7 | Unscrew screws (7). | ||
| 8 | Swivel rear bass speaker (H4/38) in direction of arrow and remove. | ||
| 9 | Install in the reverse order. |
