Remove/Install Washer Fluid Reservoir Heat Exchanger - AR82.35-P-6006FR
Model 257, 290 with code 875 (Heated windshield washer system)
Shown on model 257
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | Model 257 with engine 256, 264, 654, 656 with code 875 (Heated windshield washer system) Model 290 with engine 177, 256 with code 875 (Heated windshield washer system) |
AH20.00-P-2080-01KOA |
| Remove/install | |||
| 1 | Slowly open cap of coolant expansion reservoir and remove. | ||

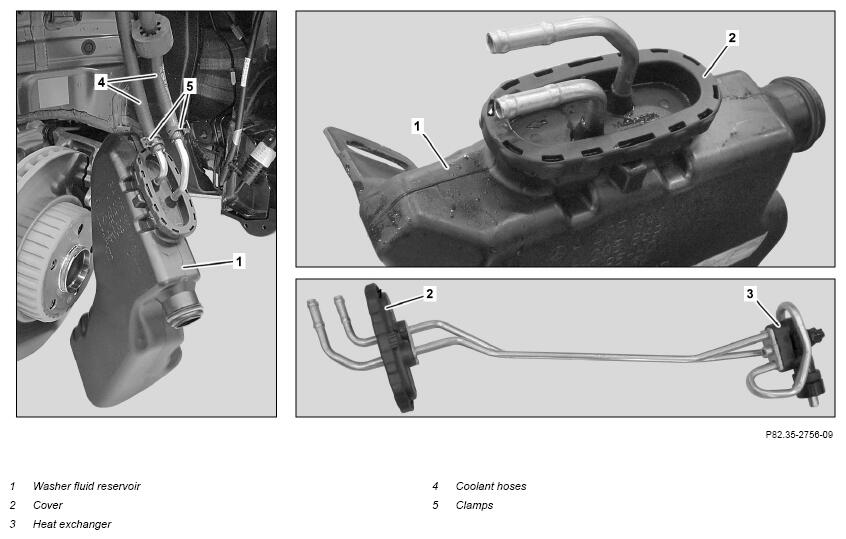

| 2 | Remove washer fluid reservoir (1). | AR82.35-P-6000FR | |
| 3 | Unclip cap (2). | ||
| 4 | Guide heat exchanger (3) out of washer fluid reservoir (1). | ||
| 5 | Disconnect coolant hoses (4). | Fig 1 | |
| 6 | Loosen clamps (5) and detach coolant hoses (4). | ||
| 7 | Detach cap (2). | When replacing the heat exchanger (3). | |
| 8 | Install in the reverse order. |
