Remove/Install Global Positioning System (GPS) Antenna Splitter - AR82.85-P-0007FRX
Model 290 with code 355 (Preinstallation for retrofitting navigation system) with code 362 (HERMES communications module LTE) with code 830 (China version)
Model 290 with code 362 (HERMES communications module LTE) with code 506 (Audio 20 NTG 5.5 radio) with code 830 (China version)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove front SAM control unit. | AR54.21-P-1254FR | |

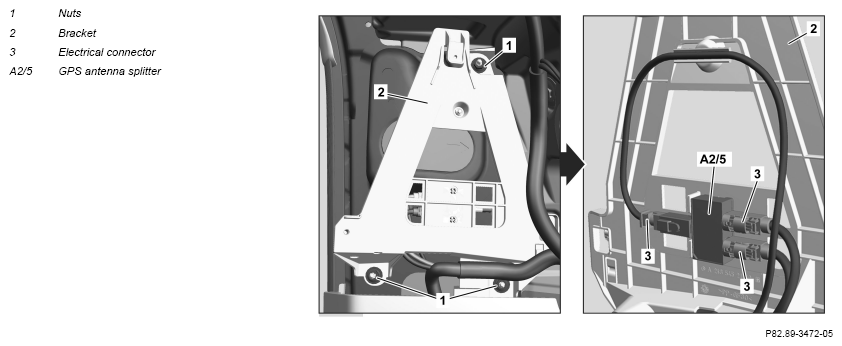

| 2 | Unscrew nuts (1) from holder (2). | ||
| 3 | Expose holder (2) and remove from A-pillar. | ||
| 4 | Unclip GPS antenna splitter (A2/5) from rear of holder (2). | ||
| 5 | Disconnect electrical connectors (3) and remove GPS antenna splitter (A2/5). | ||
| 6 | Install in the reverse order. |
