Remove/Install Emergency Call System Antenna - AR82.95-P-0017FRX
Model 290 with code 360 (HERMES UMTS)
Model 290 with code 362 (HERMES communications module LTE)
Model 290 with code 364 (HERMES - UMTS communications module for Russia)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove lower liftgate trim. | AR72.20-P-6617FRX | |

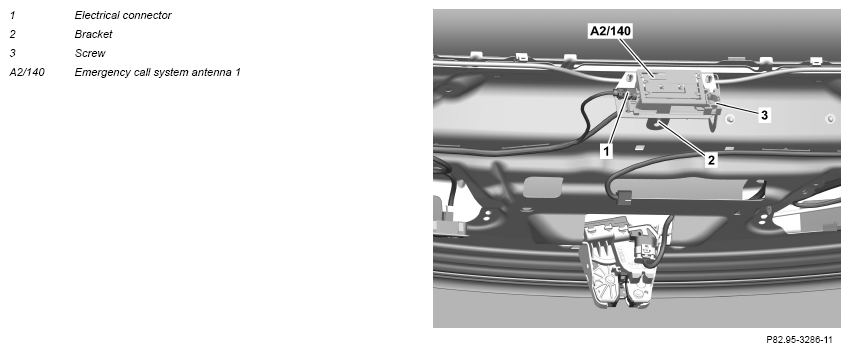

| 2 | Disconnect electrical connector (1). | ||
| 3 | Remove screw (3). | ||
| 4 | Unclip emergency call system 1 antenna (A2/140) from holder (2) and remove. | ||
| 5 | Install in the reverse order. |
