Remove/Install Driver Side Footwell Woofer - AR82.62-P-7822FR
Model 257, 290
Shown on model 257.### 1#
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove front floor covering on driver's side. | AR68.80-P-0007FR | |
| 2 | Disconnect electrical connection (2). | ||
| 3 | Unscrew nuts (1). | ||

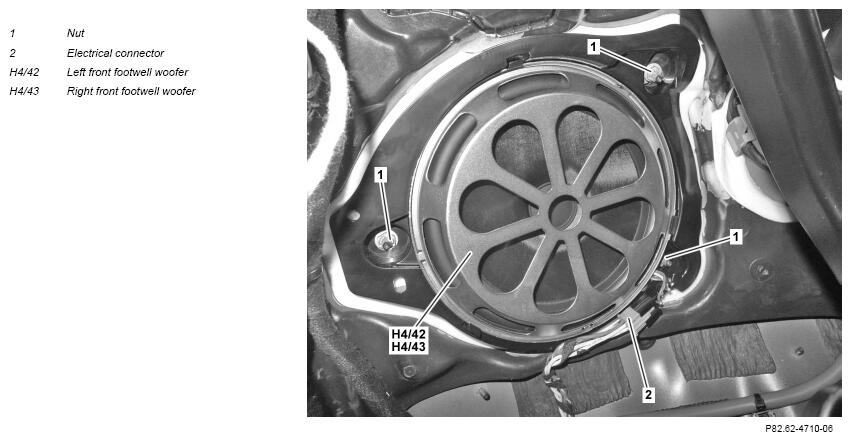

| 4 | Release and remove front footwell bass speaker (H4/42, H4/43). | Fig 1 | |
| 5 | Install in the reverse order. |
