Remove/Install DSRC Antenna - AR82.88-P-0004FR
Model 257 with code 498 (Japanese version)
Model 290 as of model year 2020 up to model year 2023 with code 830 (China version) with code 943 (Payment system for toll fees)
Model 290 up to model year 2023 with code 498 (Japanese version) with code 943 (Payment system for toll fees)
Shown on model 257 with code 498 (Japan version)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

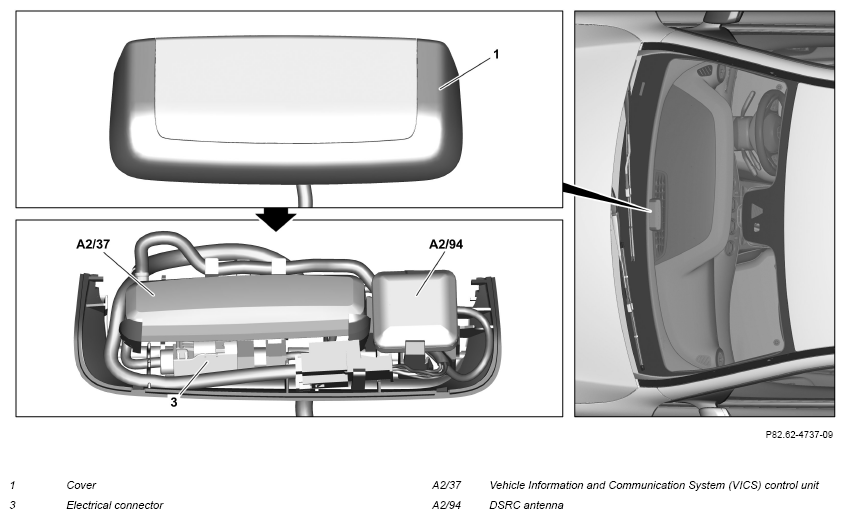

| 1 | Unclip and remove cover (1). | Fig 2 | |
| 2 | Unclip Vehicle Information and Communication System (VICS) control unit (A2/37) and place to one side with line attached. | ||
| 3 | Release and disconnect electrical connector (3) and expose electrical wiring harness. | ||
| 4 | Unclip upper cover at instrument panel and remove. | Model 290 as of model year 2020 up to model year 2023 with code 830 (China version) with code 943 (Payment system for toll fees) |
|
| Fig 1 | |||
| 5 | Unscrew bottom screw at DSRC antenna (A2/94). | Model 290 as of model year 2020 up to model year 2023 with code 830 (China version) with code 943 (Payment system for toll fees) |
|
| 6 | Unclip DSRC antenna (A2/94) and remove. | ||
| 7 | Install in the reverse order. |
