Detach/Attach Wiper Arms - AR82.30-P-6100-03FR

Model 257, 290

Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.

When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).

AS82.30-Z-0001-01A

Fig 1: Identifying Puller (001 589 57 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Thrust Washer M 10x1.5 (210 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

Remove

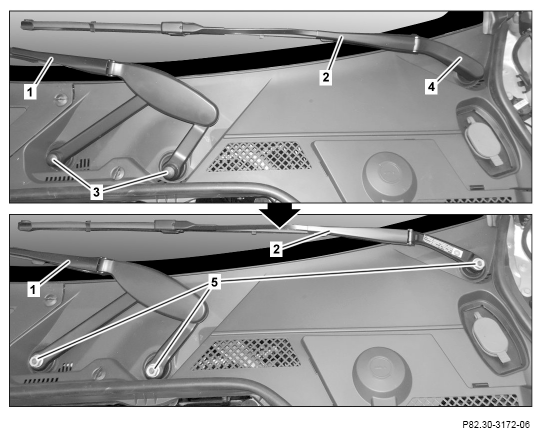

1. Remove covers (3, 4).
2. Unscrew nuts (5).
3. Release and remove wiper arms (1, 2) with puller and thrust piece from windshield wiper system.

   Installing

4. Insert wiper arms (1, 2) onto windshield wiper system driver.

   Position wiper arms (1, 2) with aid of markings on windshield.

5. Screw on the nuts (5) .
6. Mount covers (3, 4).
