Retrofit CD Drive - AZ82.64-P-0002RXA

Model 290

with code 320 (Single CD drive preinstallation)

except code 460 (Canada version)

except code 494 (US version)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Topical note	Notes on retrofitting electrical/optical lines		AH82.00-P-0000-01A
	Remove
1	Remove fragrance system alternator.
		Model 290 with code P21 (Air Quality Package)	AR83.40-P-0201FR
2	Remove glove box.
			AR68.10-P-1402FR

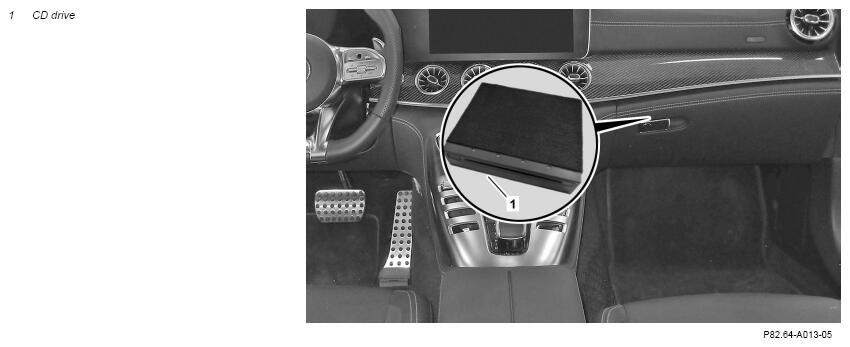

		The electrical wiring harness for the CD drive (1) is secured in front of the glove compartment housing on the instrument panel crossmember.
	Install
3	Produce drilling template for holder of CD drive (1).	Model 290.### 1#	AZ82.64-P-0002-04LWE
		Model 290.### 2#	AZ82.64-P-0002-04LWR
4	Produce adhesive film cutting template for CD drive (1).		AZ82.64-P-0002-05LWE
5	Cut adhesive film to size using cutting template.
6	Prepare glove compartment housing for installation of CD drive (1).	Model 290.### 1#	AZ82.64-P-0002-08LWE
		Model 290.### 2#	AZ82.64-P-0002-08LWR
7	Prepare holder for CD drive (1) for installation.		AZ82.64-P-0002-06LWE
8	Release electrical wiring harness for CD drive (1) from instrument panel crossmember.
9	Retrofit CD drive (1) in glove compartment housing.		AZ82.64-P-0002-03LWE
10	Install glove compartment housing with CD drive (1).
			AR68.10-P-1402FR
11	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
12	Attach note "CD drive retrofitted as per AZ82.64-P-0002RXA" under field organization texts for DG 82 and DG 54.
	Check
13	Perform function test.	See Owner's Manual.
