Notes On Determining Headlamp Aiming Values - AH82.10-P-1005-01A
Model All (4xWD, CAR, Light transporter, smart)
The prescribed degree of inclination for main headlamps (1) is given in % specific to the vehicle.
The inclination dimension for front fog lamps is given in the respective manufacturer's specifications.
Other country-specific instructions must be observed accordingly.

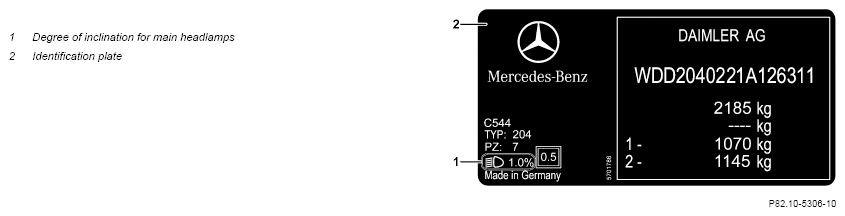

Shown on model 204.022 with 1.0% degree of inclination for main headlamps on identification plate

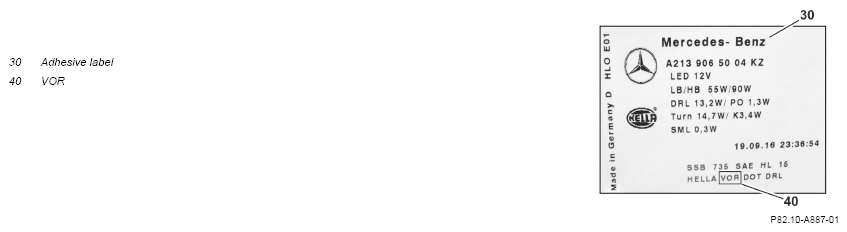

Shown on headlamp variant SAE with version VOR (40) for main headlamps
In headlamp variant SAE with version VOR (40) (see adhesive label (30) on main headlamps) 0% or 0° must be set in headlamp adjuster.

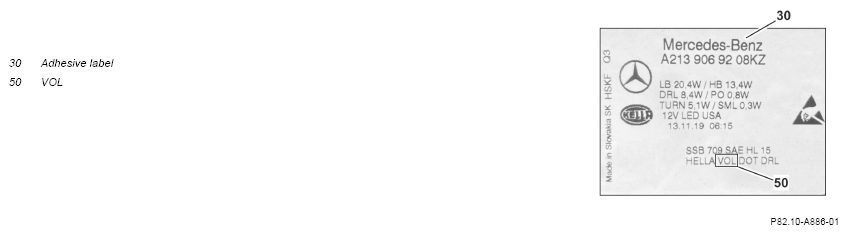

Shown on headlamp variant SAE with version VOL (50) for main headlamps
In headlamp variant SAE with version VOL (50) (see adhesive label (30) on main headlamps) 0 7% or 0 4° must be set in headlamp adjuster.
All regulations and specifications in the operating instructions from the headlamp aimer manufacturer must be observed accordingly.
