Remove/Install Side Pre-Safe (R) Pulse Gas Generator In Backrest, Replace If Necessary - AR91.60-P-0702FR
Model 257
with code 292 (PRE-SAFE® Impulse Side)
Model 290
with code 292 (PRE-SAFE® Impulse Side)
except code 555 (AMG-Performance Seat)

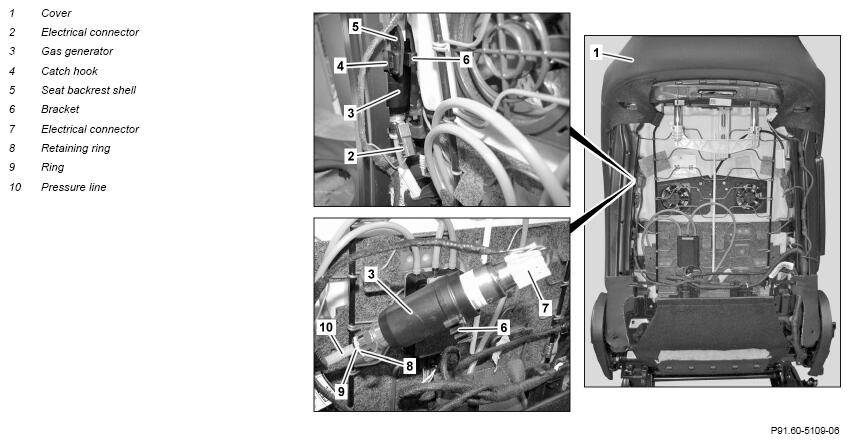

Fig 1: Side Pre-Safe (R) Pulse Gas Generator In Backrest Components Location - Model 290 With Code 292 Except Code 555
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove seat backrest trim. | AR91.10-P-1912FR | |
| 2 | Disconnect ground line on battery. | AR54.10-P-0003FR | |
| 3 | Disconnect electrical connection (2). | ||
| 4 | Release catch hook (4). | ||
| 5 | Unhook gas generator (3) with bracket (6) from seat backrest shell (5) and guide out as shown. | ||
| 6 | Detach electrical connector (7). | Fig 2 | |
| 7 | Remove retaining ring (8). | Check retaining ring (8) is correctly seated. Otherwise, a malfunction of the PRE-SAFE® pulse side may occur. |
|
| 8 | Press ring (9) in direction of gas generator (3). | ||
| 9 | Pull pressure line (10) out of gas generator (3). | Ensure correct seating of pressure line (10). Otherwise, a malfunction of the PRE-SAFE® pulse side may occur. |
|
| 10 | Install in the reverse order | ||
| Check | |||
| 11 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | ||
| AD00.00-P-2000-06FR |
