Remove/Install Driver's Seat Heater Control Unit - AR91.30-P-0034FR
Model 257, 290
with code 902 (Seat heater Plus for driver and front passenger)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform commissioning of driver's seat heating control unit (N25/5). | When replacing driver's seat heater control unit (N25/5). | |
| AD00.00-P-2000-06FR | |||
| 2 | Remove bolts from guide rails of driver's seat. | AR91.10-P-1000FR | |
| 3 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

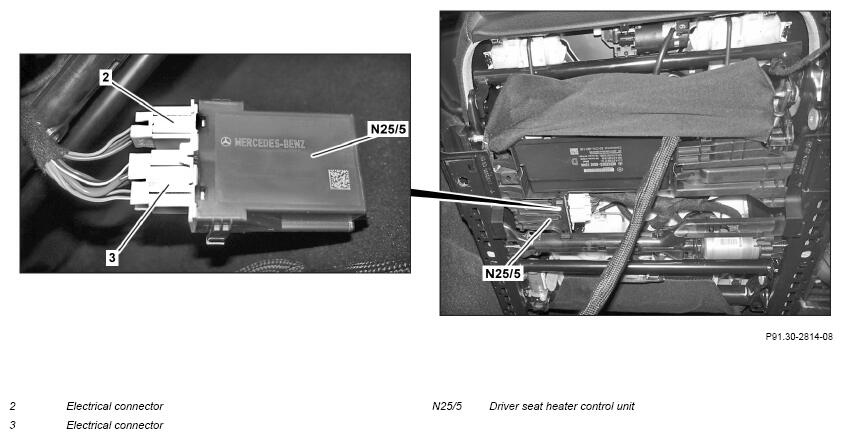

| 4 | Tilt driver's seat back and unclip the driver's seat heating control unit (N25/5). | ||
| 5 | Disconnect electrical connectors (2, 3) and remove driver's seat heating control unit (N25/5). | ||
| 6 | Install in the reverse order |
