Remove/Install Cover For Backrest At Front Seat - AR91.10-P-8656FR
Model 257
Model 290
except code 555 (AMG-Performance Seat)
Shown on model 257 with code 401 (Seat climate control for driver and front passenger)
| Remove | |||
| 1 | Remove seat backrest padding (8). | AR91.10-P-0003FR | |
| 2 | Slip cover (1) over seat backrest padding (8). | ||

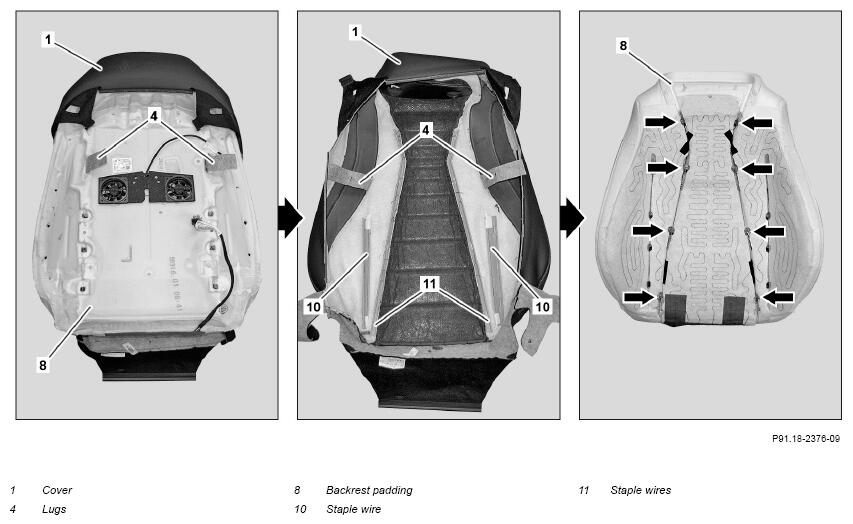

| 3 | Loosen staple wires (11) at attachment points (arrows). | AR91.10-P-8656-03LW | |
| Fig 2 | |||
| Fig 1 | |||
| 4 | Feed shackles (4) through seat backrest padding (8). | ||
| 5 | Remove cover (1) from seat backrest padding (8). | ||
| Install | |||
| 6 | Attach cutout for universal holder on cover (1). | Model 257 with code 866 (Pre-installation for Rear Seat Entertainment System) Model 290 with code 866 (Pre-installation for Rear Seat Entertainment System) except code 555 (AMG-Performance Seat) |
|
| When replacing the cover (1). | AR91.10-P-8656-02FR | ||
| 7 | Position cover (1) in center of seat backrest padding (8) and align seams of cover (1) into cutouts of seat backrest padding (8). | ||
| 8 | Secure staple wires (11) at attachment points (arrows). | AR91.10-P-8656-03LW | |
| Fig 2 | |||
| Fig 1 | |||
| 9 | Feed shackles (4) through seat backrest padding (8). | ||
| 10 | Check alignment of cover (1) based on markings on upper end of cover (1) and seat backrest padding (8). | ||
| 11 | Slip cover (1) over seat backrest padding (8). | ||
| 12 | Install seat backrest padding (8). | AR91.10-P-0003FR |
