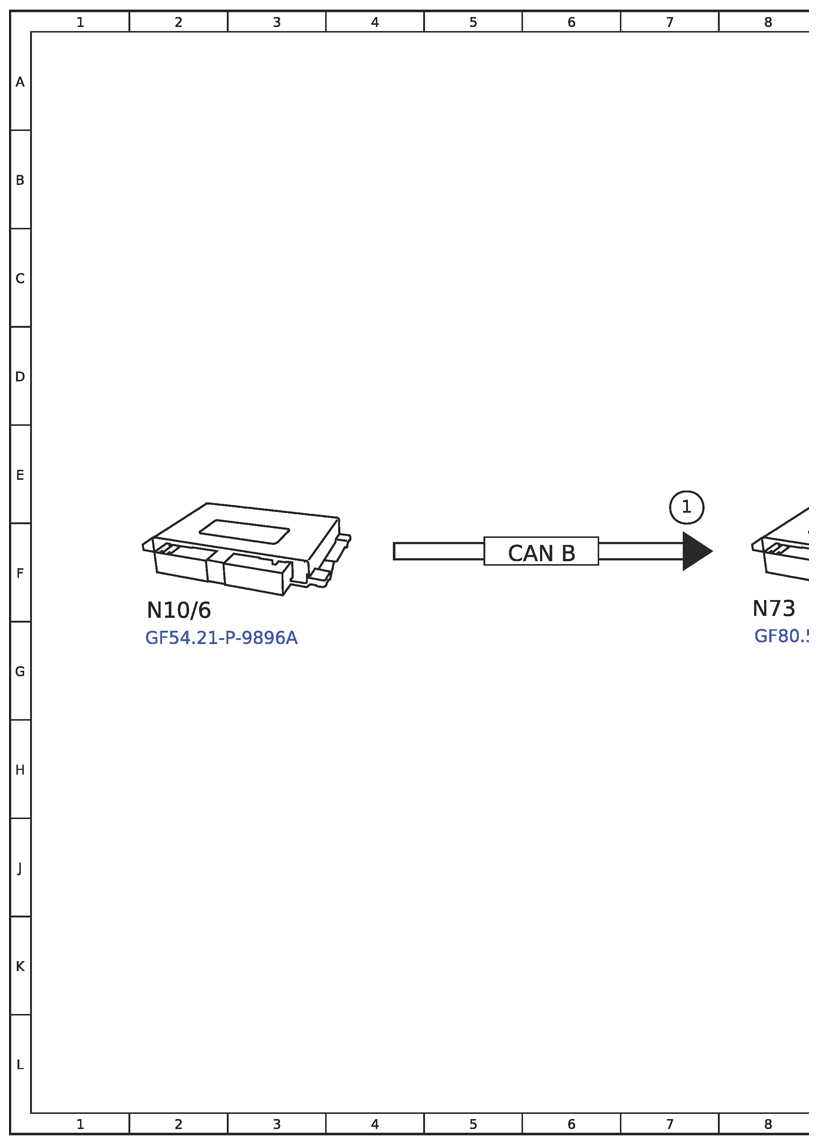

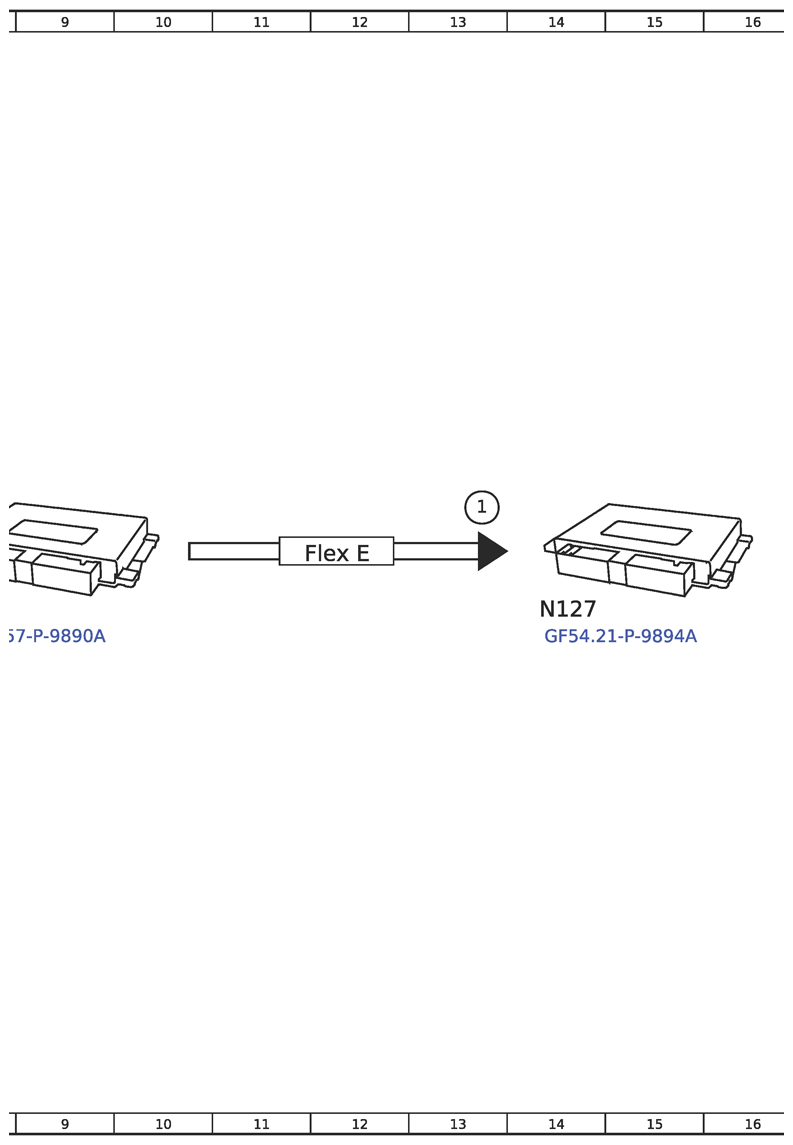

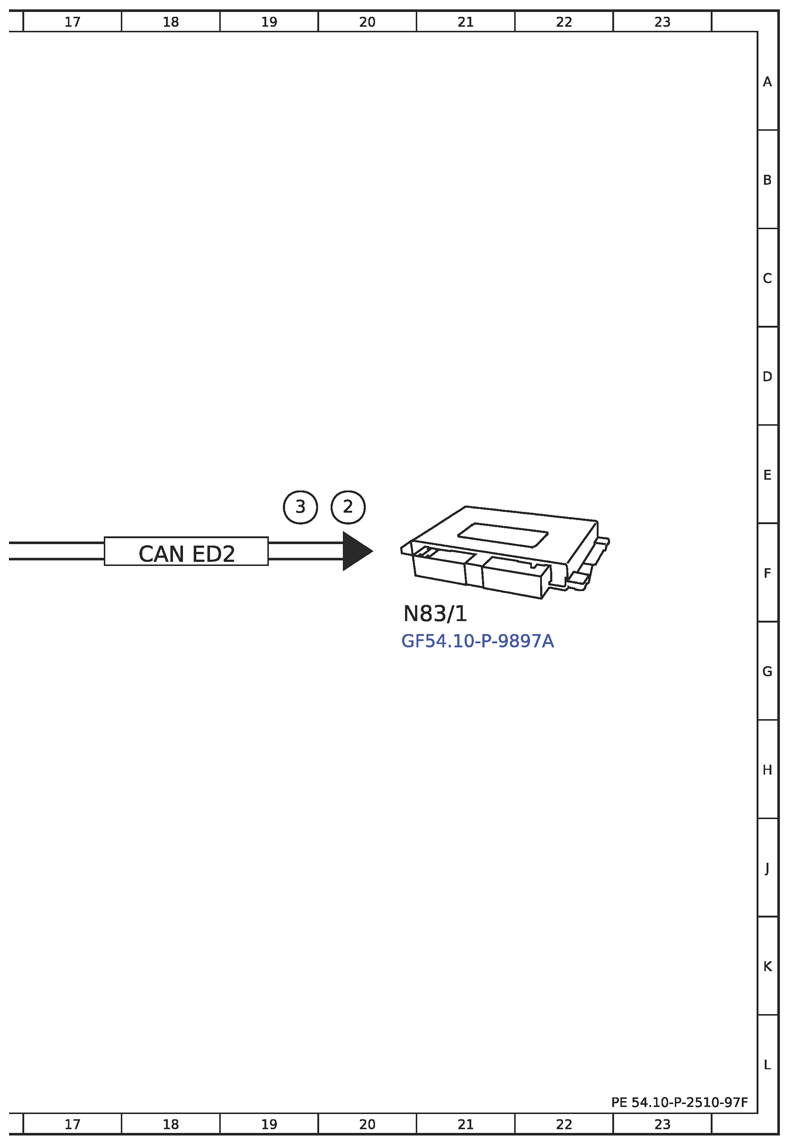

Function Schematic For Charging On-Board Electrical System Battery Through DC/DC Converter - PE54.10-P-2510-97F
Model 290 with code ME10 (Hybrid vehicle (plug-in, PHEV)) except code B01 (48V technology)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Energy transfer (buck mode), request | 7E |
| 1 | Energy transfer (buck mode), request | 13E |
| 2 | DC/DC converter mode, request | 20E |
| 3 | DC/DC converter low output voltage/current, request | 19E |
| CAN B | Interior CAN | 6F |
| CAN ED2 | CAN for energy management | 18F |
| Flex E | Chassis FlexRay | 12F |
| N10/6 | Front SAM control unit | 2F |
| N127 | Drivetrain control unit | 14F |
| N73 | Electronic ignition switch control unit | 8F |
| N83/1 | DC/DC converter control unit | 20F |
