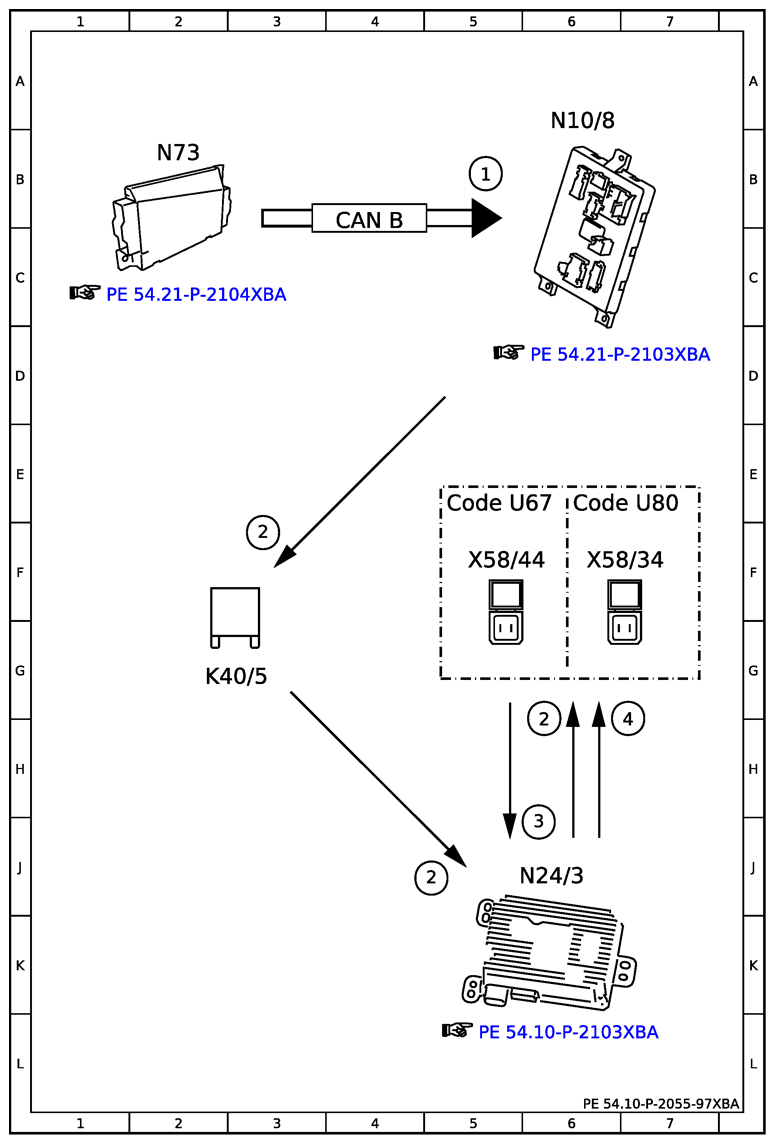

Electrical Function Schematic For DC/AC Converter - PE54.10-P-2055-97XBA
Model 257, 290 up to model year 2021 with code U67 (230 V socket in rear passenger compartment)
Model 257, 290 up to model year 2021 with code U80 (115 V socket)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5B |
| 2 | Power supply, status ON | 5J |
| 2 | Power supply, status ON | 6H |
| 2 | Power supply, status ON | 3F |
| 3 | Socket microswitch, status | 6J |
| 4 | Socket, actuation | 7H |
| CAN B | Interior CAN | 4C |
| Code U67 | 230 volt socket in interior compartment | 5E |
| Code U80 | 115 V socket | 6E |
| K40/5 | Rear fuse and relay module | 2G |
| N10/8 | Rear SAM control unit | 6A |
| N24/3 | DC/AC converter control unit | 6J |
| N73 | Electronic ignition switch control unit | 2B |
| X58/34 | 115 V socket | 6F |
| X58/44 | 230V socket | 5F |
