Remove/Install Rear Spoiler Control Unit - AR54.21-P-0367FRX
Model 290
except code U94 (Rear spoiler, static)
except code U99 (Rear spoiler, static, carbon)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove lower liftgate trim. | AR72.20-P-6617FRX | |

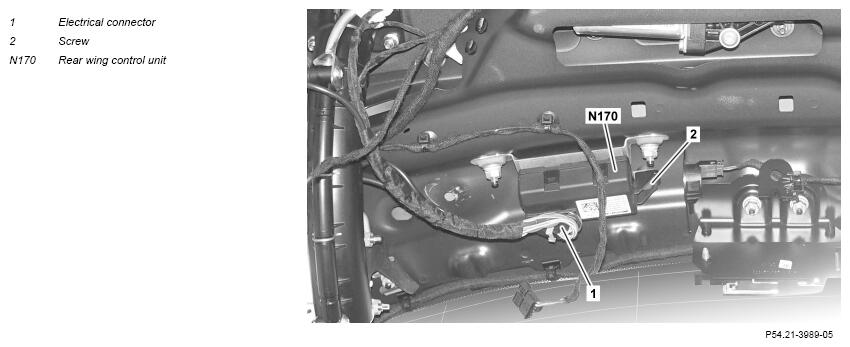

| 3 | Disconnect electrical connector (1). | ||
| 4 | Remove screw/bolt (2). | ||
| 5 | Remove rear wing control unit (N170). | ||
| 6 | Install in the reverse order. |
