Remove/Install Pre-Safe (R) Pulse Radar Sensor In Front Bumper - AR54.21-P-0703FR
Model 257, 290
with code 292 (PRE-SAFE® Impulse Side)

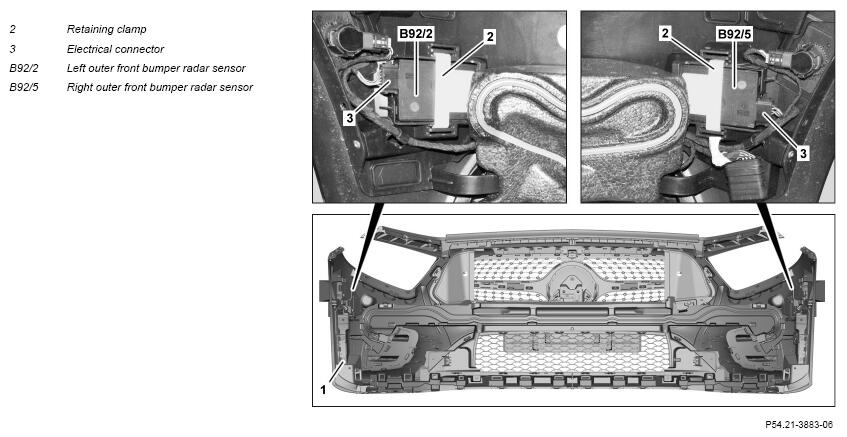

Shown on model 257 up to model year 2021
Shown on model 257 as of model year 2021

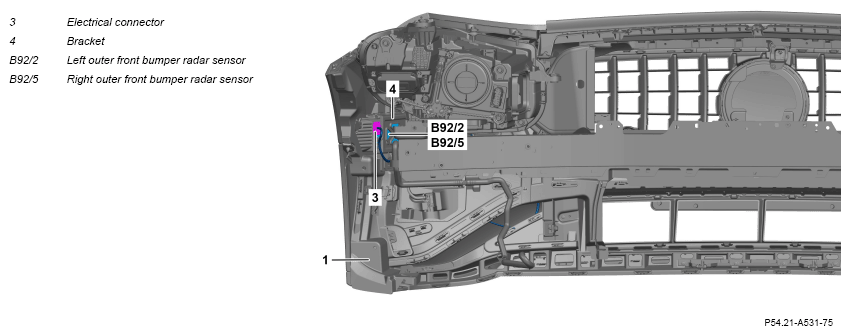

Shown on model 290 as of model year 2023
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | |
| Remove/install | |||
| 1 | Remove fender liner front section at left or right. | AR88.10-P-1301FR | |
| 2 | Release and disconnect electrical connection (3). | ||
| 3.1 | Unclip retaining clamp (2) and remove left outer front bumper radar sensor (B92/2) or right outer front bumper radar sensor (B92/5). | Model 257 up to model year 2021 with code 292 (PRE-SAFE® Impulse Side) Model 290 up to model year 2023 with code 292 (PRE-SAFE® Impulse Side) |
|
| 3.2 | Unclip holder (4) and remove left outer front bumper radar sensor (B92/2) or right outer front bumper radar sensor (B92/5). | Model 257 as of model year 2021 with code 292 (PRE-SAFE® Impulse Side) |
|
| 3.3 | Unclip holder (4), remove screw (5) and remove left outer front bumper radar sensor (B92/2) or right outer front bumper radar sensor (B92/5). | Model 290 as of model year 2023 with code 292 (PRE-SAFE® Impulse Side) |
|
| 4 | Install in the reverse order. | ||
| 5 | Perform commissioning of left outer front bumper radar sensor (B92/2) or right outer front bumper radar sensor (B92/5). | When replacing left outer front bumper radar sensor (B92/2) or right outer front bumper radar sensor (B92/5). | |
| AD00.00-P-2000-06FR |
