Remove/Install Parking System Control Unit - AR54.65-P-0018FRX
Model 290 with code 235 (Parking Pilot with PARKTRONIC)
Shown with code 811 (Advanced sound system) and with code 489 (AIR BODY CONTROL)
Shown with code 811 (Advanced sound system) and with code 489 (AIR BODY CONTROL)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission parking system control unit (N62). | When replacing parking system control unit (N62). | |
| AD00.00-P-2000-06FR | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove side trim in left load compartment. | AR68.30-P-1185FRX | |

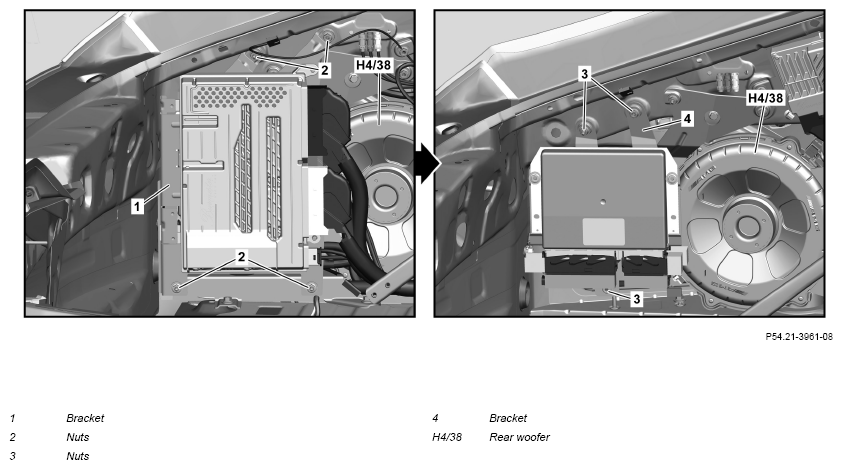

| 4 | Unscrew nuts (2) and set aside holder (1) with control units attached. | Model 290 with code 235 (Parking Pilot with PARKTRONIC) with code 810 (Sound system) Model 290 with code 235 (Parking Pilot with PARKTRONIC) with code 811 (Advanced sound system) |
|
| 5 | Unscrew nuts (3) and set aside holder (4) with control units attached. | ||
| 6 | Remove rear bass speaker (H4/38). | Model 290 with code 235 (Parking Pilot with PARKTRONIC) with code 810 (Sound system) Model 290 with code 235 (Parking Pilot with PARKTRONIC) with code 811 (Advanced sound system) |
AR82.62-P-7842FRX |

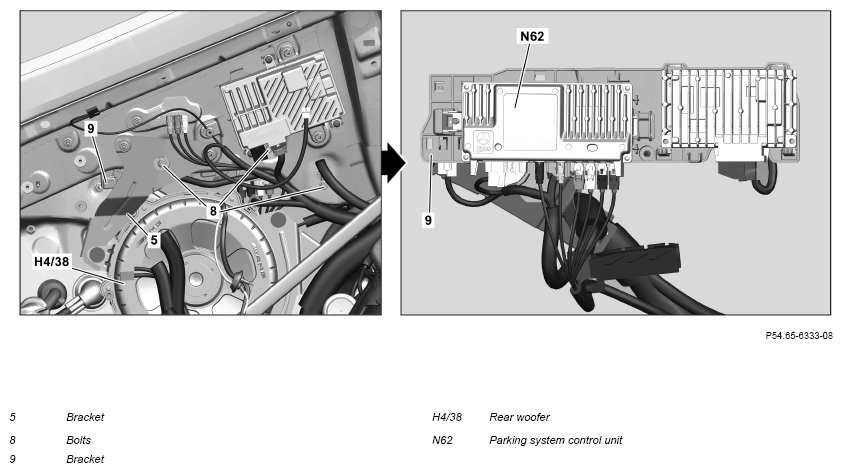

| 7 | Loosen screws (8), remove holder (9) with parking system control unit (N62) and set aside in vehicle. | ||
| 8 | Disconnect electrical connectors from parking system control unit (N62). | ||
| 9 | Unclip parking system control unit (N62) from holder (9) and remove. | ||
| 10 | Install in the reverse order. |
