Remove/Install On-Board Electrical System Battery - AR54.10-P-0009FRY

Model 290

except code U98 (LITHIUM-ION STARTER BATTERY (LISB))

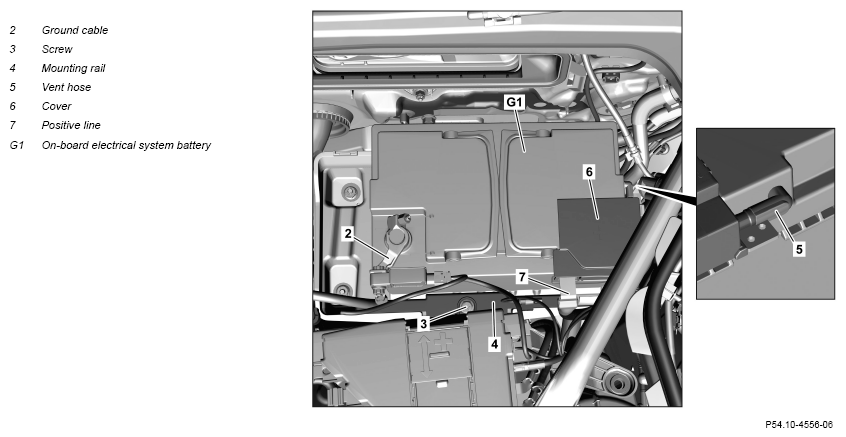

Shown except code B01 (48V technology)

Courtesy of MERCEDES-BENZ USA

	Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment		AH00.00-Z-0300-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on battery		AH54.10-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Confirm change of on-board electrical system battery (G1) using diagnosis system in signal acquisition and actuation module under Actuation menu item.	When replacing the on-board electrical system battery (G1).
		This updates the charging characteristic for the on-board electrical system battery (G1).	AD00.00-P-2000-06FR
2	Disconnect ground line (2) from on-board electrical system battery (G1).		AR54.10-P-0003FR
3.1	Remove screw (3) from mounting rail (4) and place mounting rail (4) with tensioning strap to one side.	Model 290 with code B01 (48V technology) except code U98 (LITHIUM-ION STARTER BATTERY (LISB))
		Screw/bolt, battery mounting rail to battery frame	*BA54.10-P-1001-01A
3.2	Unscrew screw (3) of mounting rail (4) until onboard electrical system battery (G1) can be removed.	Model 290 except code B01 (48V technology) except code U98 (LITHIUM-ION STARTER BATTERY (LISB))
		Screw/bolt, battery mounting rail to battery frame	*BA54.10-P-1001-01A
4	Detach vent hose (5) from on-board electrical system battery (G1).	Check bleed hose (5) is correctly seated. Otherwise leaking battery vapor may damage the vehicle.
5	Remove cover (6).
6	Disconnect positive line (7) from on-board electrical system battery (G1).	Nut, electrical line to negative terminal/positive terminal of on-board electrical system battery	*BA54.10-P-1004-01A
7	Remove on-board electrical system battery (G1).
8	Install in the reverse order.
