Remove/Install KEYLESS-GO Start/Stop Switch - AR54.25-P-4000FR
Model 257
Model 290

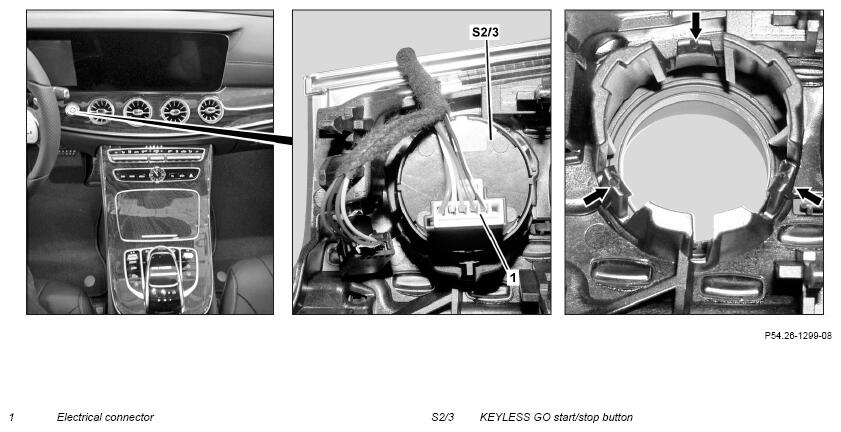

Shown on model 257
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Disconnect ground line from battery. | AR54.10-P-0003FR | |
| 2 | Remove trim element from passenger-side instrument panel. | AR68.10-P-1187FR | |
| 3 | Disconnect electrical connector (1). | ||
| 4 | Unclip KEYLESS-GO start/stop button (S2/3) from catch hooks (arrows) and remove. | ||
| 5 | Install in the reverse order. |
