Remove/Install Fuse And Relay Module For Engine Compartment - AR54.15-P-0005FRX
Model 290
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Detach ground line of on-board electrical system battery. | AR54.10-P-0003FR | |
| 2 | Remove cover in left engine compartment. | ||

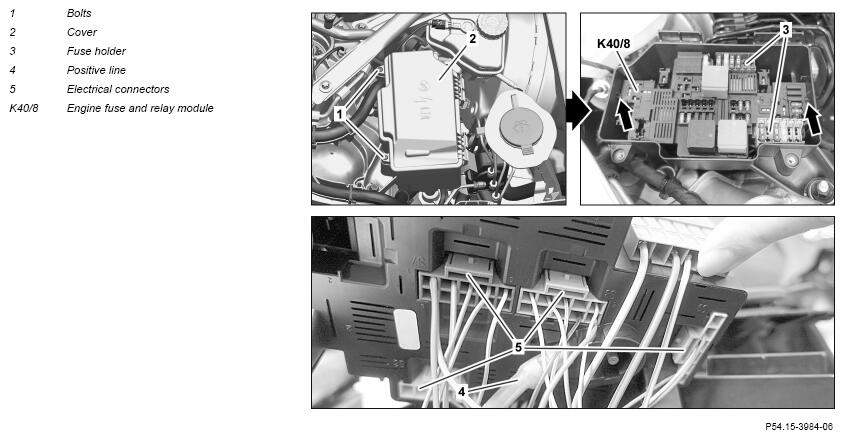

| 3 | Unscrew screws (1) and remove cover (2). | ||
| 4 | Release engine fuse and relay module (K40/8) (arrows) and remove from housing. | ||
| 5 | Unclip fuse holders (3) from engine fuse and relay module (K40/8). | ||
| 6 | Detach positive line (4) from engine fuse and relay module (K40/8). | *BA54.15-P-1007-01K | |
| 7 | Disconnect electrical connectors (5) at engine fuse and relay module (K40/8). | ||
| 8 | Remove engine fuse and relay module (K40/8). | ||
| 9 | Install in the reverse order. |
FUSE AND RELAY BOX
| Number | Designation | Model 290 | ||
|---|---|---|---|---|
| BA54.15-P-1007-01K | Nut, positive line to engine fuse and relay module | M6 | Nm | 8 |
