Remove/Install DC/AC Converter Control Unit - AR54.21-P-1600FRX
Model 290
with code U67 (230 V socket in rear passenger compartment)
Model 290
with code U80 (115 V socket)

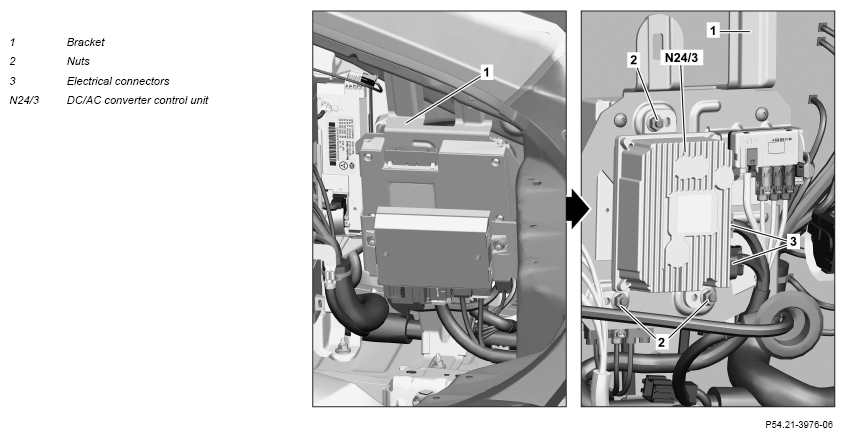

Shown on model 290 with code 865 (TV tuner) and code 550 (Trailer hitch)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove side trim in right load compartment. | AR68.30-P-1185FRX | |
| 2 | Detach ground line of on-board electrical system battery. | AR54.10-P-0003FR | |
| 3 | Remove holder (1) and place to one side with electric lines connected. | ||
| 4 | Disconnect electrical connection (3). | ||
| 5 | Unscrew nuts (2) and remove DC/AC converter control unit (N24/3). | ||
| 6 | Install in the reverse order. |
