Remove/Install Transfer Case Control Unit - AR28.19-P-1003MNI
Transmission 725.09 in model 290 with engine 177
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Transmission 725.163 in model 290 with engine 177.8
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

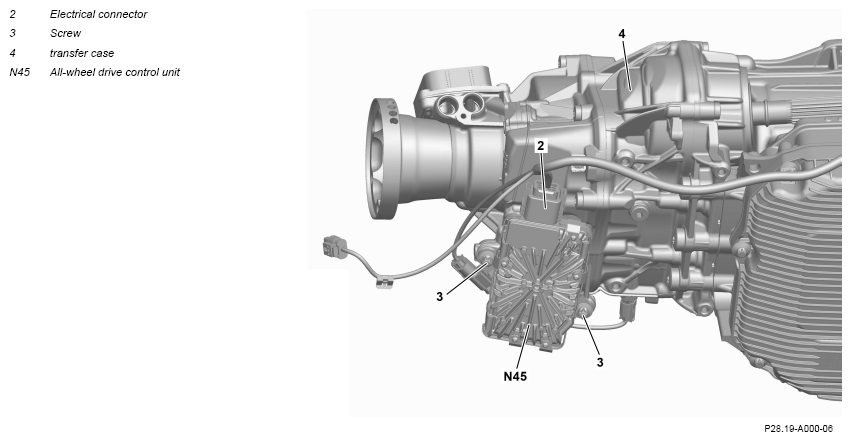

| 1 | Release and disconnect electrical connector (2). | ||
| 2 | Remove screw/bolts (3). | *BA28.10-P-1010-01G | |
| 3 | Remove all-wheel drive control unit (N45) downwards | The catch hooks of the all-wheel drive control unit (N45) must engage in the grooves in the transfer case 4). Damage will otherwise occur. |
|
| 4 | Install in the reverse order. | ||
| 5 | Commission all-wheel drive control unit (N45). | When replacing the all-wheel drive control unit (N45). | |
| AD00.00-P-2000-06FR | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. | AS00.00-Z-0005-01A | |
| 6 | burns) resulting from working on the engine while it is being started or when it is running. Perform engine test run; while doing so, check transfer case (4) for proper operation and leak tightness. |
Do not touch hot or rotating parts. |
COMPLETE TRANSFER CASE
| Number | Designation | Model 206.080/087/280/287 with transmission 725.1 Model 213.061/088/089/261/2 88/289 with transmission 725.0 Model 214.063/064/263/264 with transmission 725.1 Model 223.182 with transmission 725.1 Model 236.380/480 with transmission 725.1 Model 238.361/461 with transmission 725.0 Model 253.388/389/988/989 with transmission 725.0 Model 254.380/387/680/687 with transmission 725.1 Model 290.661/688 with transmission 725.0 | Model 205 with transmission 725.0 Model 206 (except 206.080/087/280/287) with transmission 725.1 Model 213 (except 213.061/088/089/261/2 88/289) with transmission 725.0/1 Model 214 (except 214.063/064/263/264) with transmission 725.1 Model 217, 218, 222 with transmission 725.0 Model 223 (except 223.182) with transmission 725.0/1 Model 236 (except 236.380/480) with transmission 725.1 Model 238 (except 238.361/461) with transmission 725.0/1 Model 253 (except 253.388/389/988/989) with transmission 725.0 Model 254 (except 254.380/387/680/687) with transmission 725.1 Model 257 with transmission 725.0/1 Model 290 (except 290.661/688) with transmission 725.0/1 | |
|---|---|---|---|---|
| BA28.10-P-1010-01G | Bolt, control unit to transfer case | Nm | 24 | 24 |
