Transfer Case - Oil Change - AP28.00-P-2801C

Model 213 with transmission 725.096 with code M005 (Vehicles with 4MATIC/all-wheel drive) except code 800 (Model year 2020) except code 807 (Model year 2017) except code 808 (Model year 2018) except code 809 (Model year 2019)

Model 213.061/261, 238.361/461, 257.361 with transmission 725.0

Model 253 with transmission 725.096 with code M005 (Vehicles with 4MATIC/all-wheel drive) except code 807 (Model year 2017) except code 808 (Model year 2018) except code 809 (Model year 2019)

Model 290 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)

Courtesy of MERCEDES-BENZ USA

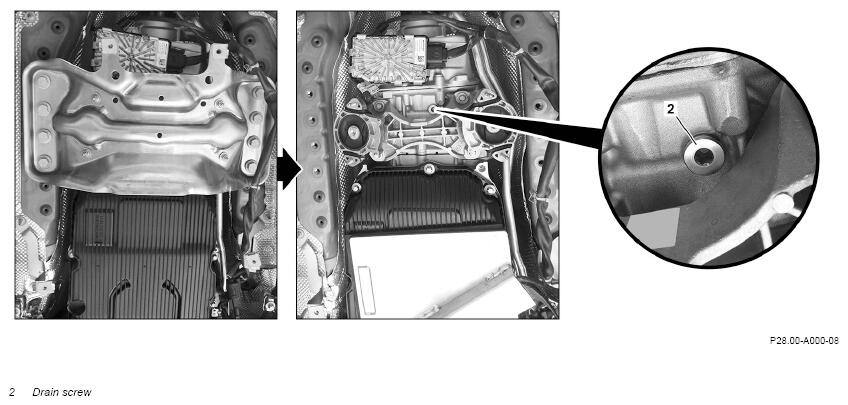

Shown on model 290.659

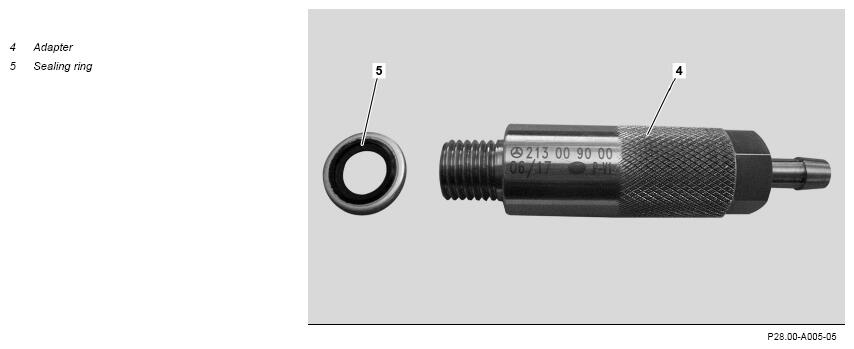

Shown on adapter (4) with sealing ring (5) - special tool 213 589 00 90 00

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Remove
1	Remove the rear engine support.
		Model 213 with engine 177	AR22.10-P-4360MNE
		Model 213, 238, 257, 290 with engine 256.9	AR22.10-P-4360MSA
		Model 253 with engine 177	AR22.10-P-4360MNG
		Model 290 with engine 177	AR22.10-P-4360MNI
	Clean
2	Clean area surrounding drain screw (2).
	Remove
3	Place absorbent shop towel in area between engine mount and drain screw (2).
4	Remove drain screw (2) from transfer case.
	Drain off
5	Pull out overflow pipe using extraction hook and drain oil from transfer case.	Collect escaping oil in a suitable container. Damage can otherwise occur. Extraction hook	Fig 3
	Clean
6	Clean threaded hole in transfer case.
	Install
7	Insert overflow pipe into transfer case and screw in using old drain screw (2) until the overflow pipe latches audibly into place.
	Remove
8	Remove old drain screw (2) from transfer case.	Dispose of old drain screw (2). Otherwise, this may lead to leakage and consequential damage.
	Install
9	Screw the adapter (4) with the sealing ring (5) into the threaded hole of the drain screw (2).	Adapter	Fig 2
	Pour in
10	Add specified oil filling capacity to hand pump.	Transfer case oil	*BF28.10-P-1001-01F
		Hand pump	Fig 1
11	Connect hand pump to adapter (4).	Hand pump	Fig 1
		Adapter	Fig 2
12	Fill transfer case.	Transfer case oil	*BF28.10-P-1001-01F
		Hand pump	Fig 1
13	Disconnect hand pump from adapter (4).	Drain off excess oil. Damage can otherwise occur. Hand pump	Fig 1
		Adapter If less than 50 ml of oil flow out of the transfer case, ↓ Fill 100 ml into hand pump and repeat operation step 11. If more than 50 ml of oil flows out of the transfer case ↓ transfer case is sufficiently filled; continue with operation step 14.	Fig 2
	Remove
14	Remove adapter (4) with sealing ring (5) from threaded hole of drain screw (2).	Adapter	Fig 2
	Clean
15	Clean threaded hole of drain screw (2) in transfer case.
	Install
16	Screw new drain screw (2) tightly into transfer case.	Replace drain screw (2) each time it is removed. Otherwise, this may lead to leakage and consequential damage. Drain screw to transfer case	*BA28.10-P-1003-01G
17	Remove shop towel.
18	Install rear engine carrier.
		Model 213 with engine 177	AR22.10-P-4360MNE
		Model 213, 238, 257, 290 with engine 256.9	AR22.10-P-4360MSA
		Model 253 with engine 177	AR22.10-P-4360MNG
		Model 290 with engine 177	AR22.10-P-4360MNI
	Reset learned values
19	Connect diagnostic unit.
		Model 213.061/261 with transmission 725.0	AD00.00-P-2000-04B
		Model 238.361/461 with transmission 725.0	AD00.00-P-2000-06LWO
		Model 257.361 with transmission 725.0 Model 290 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AD00.00-P-2000-06FR
20	Reset learned values in transfer case control unit.
21	Disconnect diagnostic unit.
		Model 213.061/261 with transmission 725.0	AD00.00-P-2000-04B
		Model 238.361/461 with transmission 725.0	AD00.00-P-2000-06LWO
		Model 257.361 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) with code M016 (Uprated engine) Model 290 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AD00.00-P-2000-06FR

Fig 1: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Adapter (213 589 00 90 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
