4Matic Transfer Case, Function - GF28.10-P-1000AVO
Model 257.361, 290
up to model year 2021

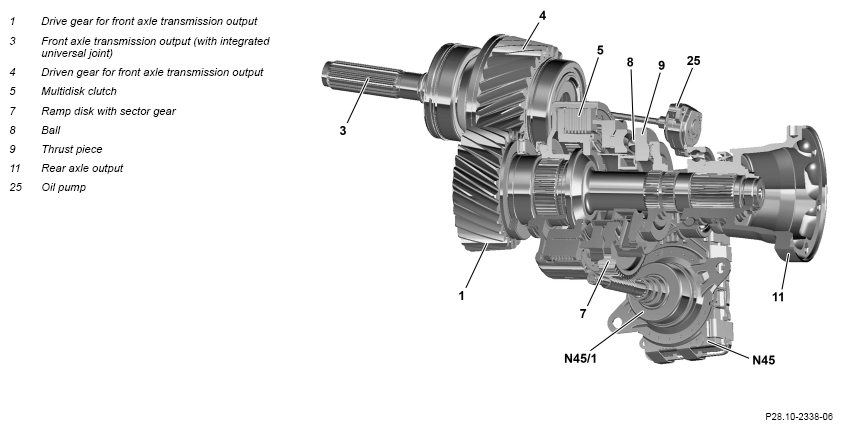

Sectional view of transfer case
4MATIC transfer case, general 14 H
In the event of malfunctions the entire transfer case must be replaced
The separate transfer case is fitted to the transmission housing What makes it so special is its single-speed front axle transmission output with integrated universal joint (3) Thanks to the single-speed design a spur gear set with bearing mount is not required This acts positively on efficiency weight and the noise characteristics of the drive train
| Overview of system components, automatically controlled all-wheel drive (4MATIC) | GF28.00-P-9998AVO |
