Check Vehicle Level At Front And Rear Axle With Electronic Inclinometer, Adjust If Necessary - AR40.20-P-0301LSE

Model 290

with code ME10 (Hybrid vehicle (plug-in, PHEV))

Shown on front axle on right side of vehicle

Courtesy of MERCEDES-BENZ USA

Shown on rear axle on right side of vehicle

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on rear axle on right side of vehicle

Shown on rear axle on right side of vehicle

Courtesy of MERCEDES-BENZ USA

	Check
1	Check condition of vehicle.	Before the vehicle level check it must be ensured that none of the suspension components are damaged or exhibit wear.
		For the vehicle level check, all vehicle parts must be installed and the vehicle completed and in a ready to drive condition. The vehicle must not be loaded.
2	Check and correct tire pressure.
			AP40.15-P-4061A
3	Drive the vehicle onto measuring station and secure using parking brake.
4	Unlock turn and slip plates.
5	Clean suspension components in measuring range (a), adapter (5) in measuring range (b) and contact surfaces.	Assembly cleaner	*BR00.45-Z-1028-04A
		Adapter	Fig 1

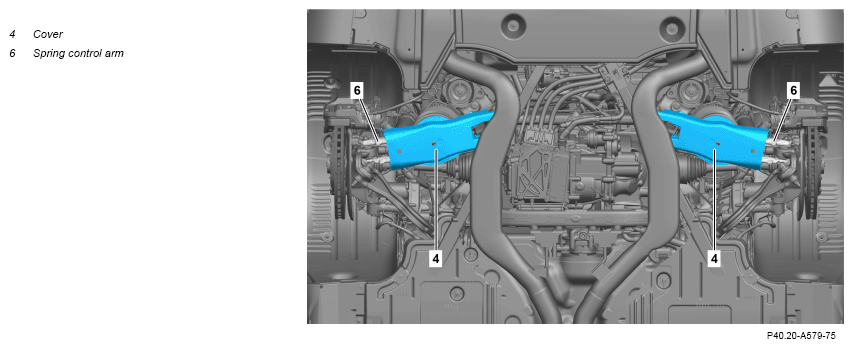

6	Remove trims (4) at spring link (6) of rear axle.
	Measure level on front axle

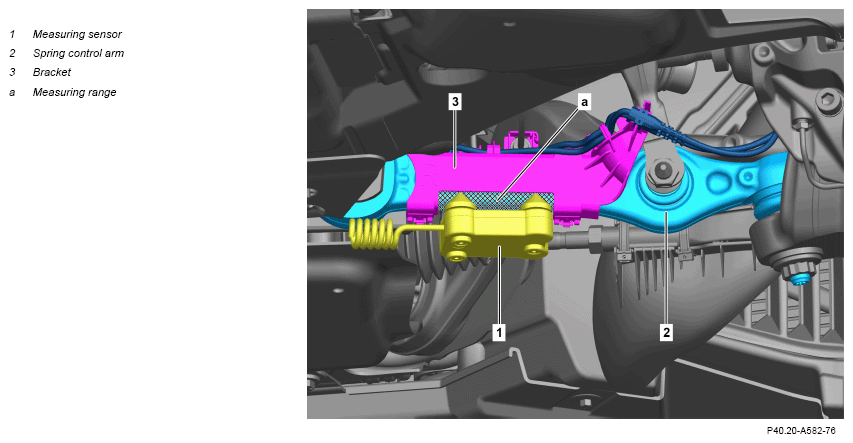

7	Place measuring sensor (1) on spring link (2) of front axle in measuring range (a) and measure vehicle level at measuring point 1 (front left) and measuring point 2 (front right).
	000 588 05 19 00 Vehicle level inclinometer		WS40.00-P-0007B
		The connecting cable of the measuring sensor (1) must face toward the center of the vehicle. Otherwise the measurement will be inaccurate.
		Position measuring sensor (1) between plastic brackets of holder (3) at spring link (2). Save or note down measured values.
8	Remove measuring tool.
	000 588 05 19 00 Vehicle level inclinometer		WS40.00-P-0007B
	Measure level at rear axle

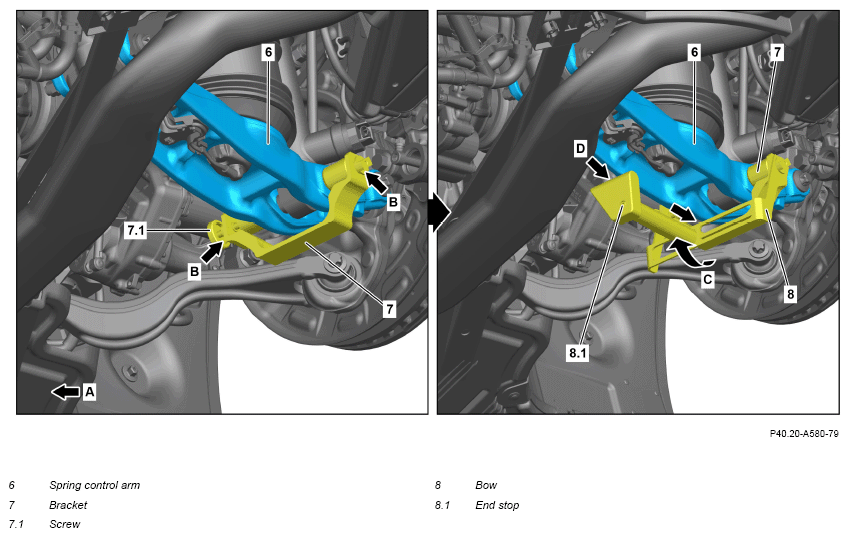

9	Attach holder (7) with screw (7.1) in direction of travel (arrow A) at shock absorber threaded point on spring link (6).	Adapter	Fig 1
10	Insert forks on bracket (8) at front and rear into supports (arrows B) on holder (7).	Adapter	Fig 1
11	Swivel bracket (8) upwards (arrow C) against spring link (6) until end stop (8.1) makes contact with spring link (6) (arrow D) and hold.	When measuring on the right side of the vehicle, the end stop (8.1) on the bracket (8) lies at the front on the spring link (6). When measuring on the left side of vehicle, the end stop (8.1) on the bracket (8) lies at the rear on the spring link (6). This has no effect on the measurement result.
		Adapter	Fig 1

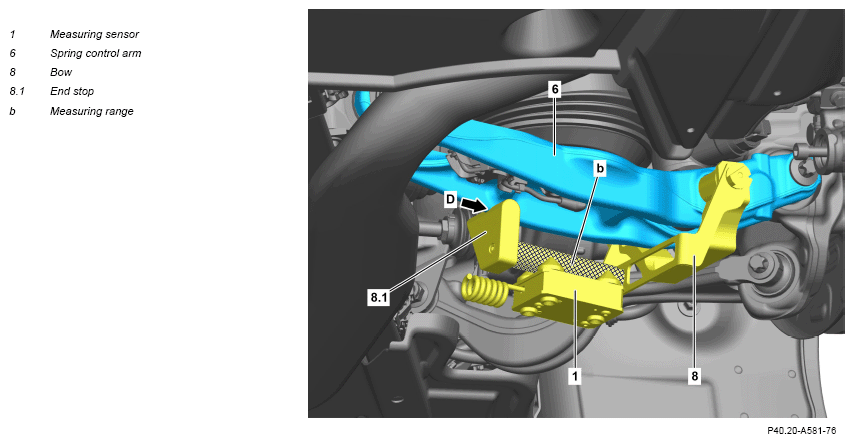

12	Place measuring sensor (1) at bracket (8) in measuring range (b), and measure vehicle level at measuring point 1 (rear left) and measuring point 2 (rear right).
	000 588 05 19 00 Vehicle level inclinometer		WS40.00-P-0007B
		The end stop (8.1) must make contact with the spring link (6). Otherwise the measurement will be inaccurate.
		The connecting cable of the measuring sensor (1) must face toward the center of the vehicle. Otherwise the measurement will be inaccurate.
		Save or note down measured values.
		Adapter	Fig 1
13	Remove measuring tools.
	000 588 05 19 00 Vehicle level inclinometer		WS40.00-P-0007B
		Adapter	Fig 1
	Check
14.1	Assign specified suspension data on-line.	If an on-line connection is present.
			AR40.20-P-0001A
		To make it easier to assign, the specified suspension data can be requested on-line - where it is updated daily - by means of the vehicle identification number.
14.2	Assign specified suspension data off-line.	If no on-line connection is present. Assign suspension data	AR40.20-P-0203FX
15	Compare determined values with specified suspension data.	The specified test tolerance applies only when checking the vehicle level but not for calibration.
	Adjust
16	Calibrate vehicle level using vehicle diagnosis system.	When the vehicle level is outside the test tolerance.
			AD00.00-P-2000-06FR
17	Check and correct headlamp adjustment.	If vehicle level has been calibrated.
			AP82.10-P-8260O

Fig 1: Identifying Adapter (206 589 00 19 00)

Courtesy of MERCEDES-BENZ USA
