Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01FXC

Model 290.688/689 1#

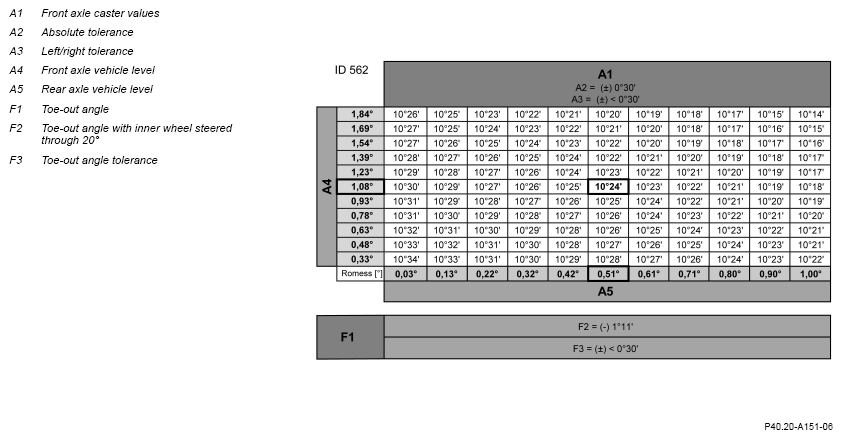

G16559504

Courtesy of MERCEDES-BENZ USA

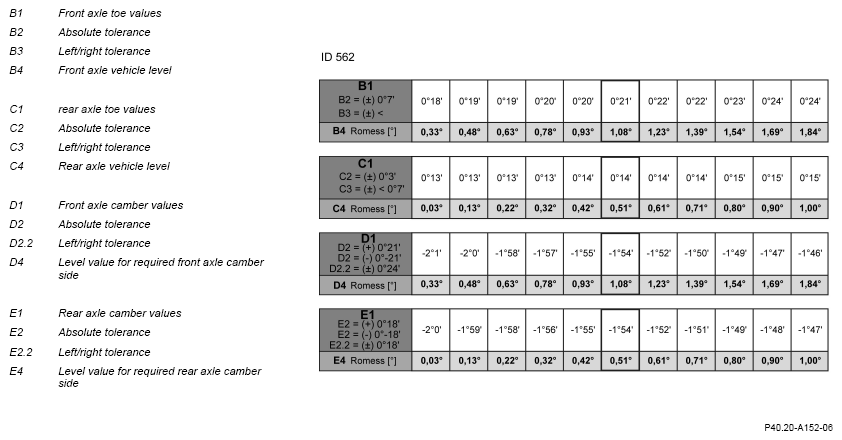

G16559505

Courtesy of MERCEDES-BENZ USA
