Remove/Install Right Front Body Acceleration Sensor - AR32.22-P-0007FRX
Model 290
with code 459 (Steel suspension with adjustable damping)
Model 290
with code 489 (AIR BODY CONTROL)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove right fender liner front section. | AR88.10-P-1301FR | |

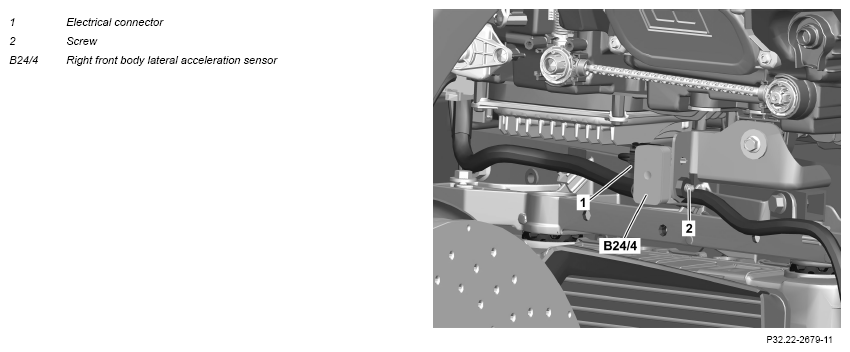

| 3 | Remove screw/bolt (2). | ||
| 4 | Disconnect electrical connector (1) and remove right front body acceleration sensor (B24/4). | ||
| 5 | Install in the reverse order. |
