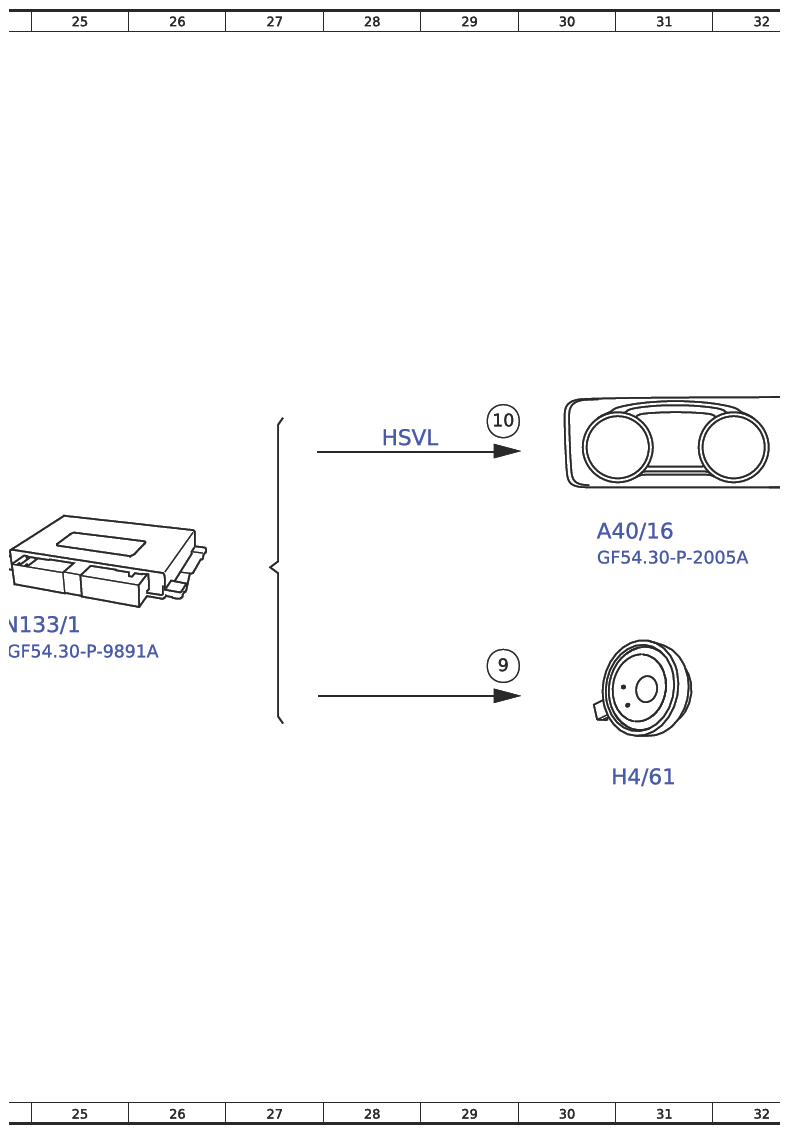

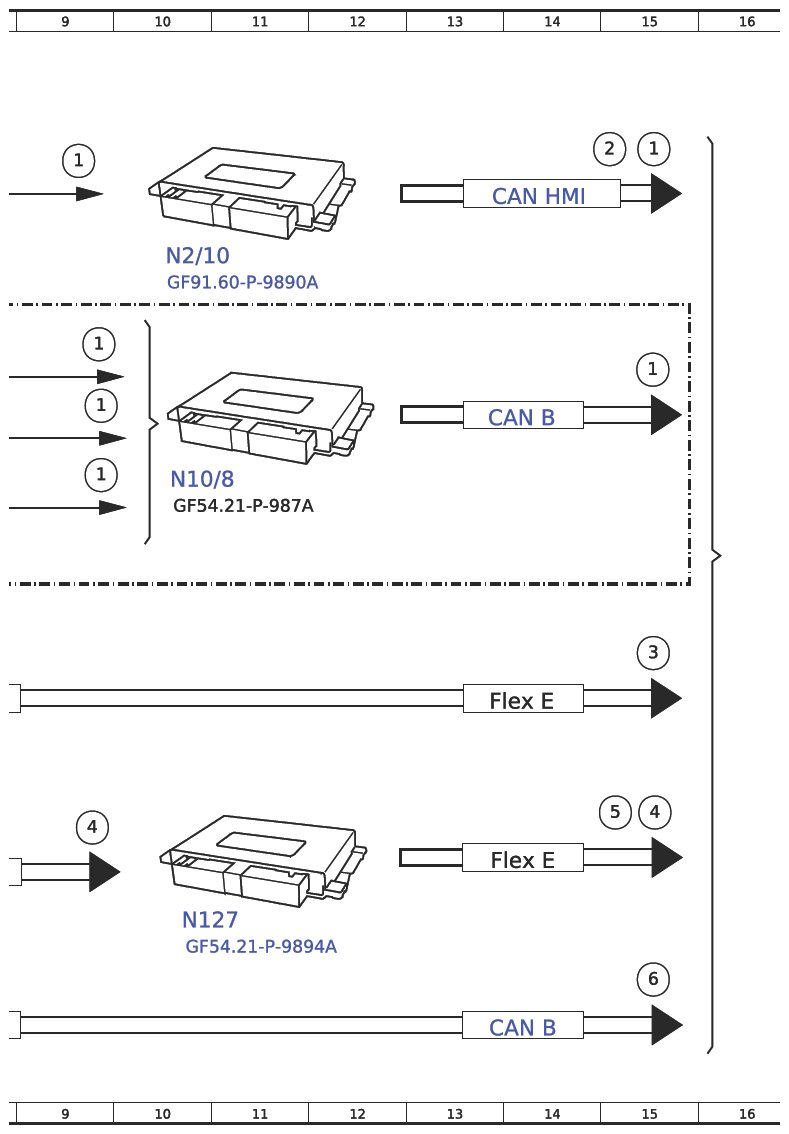

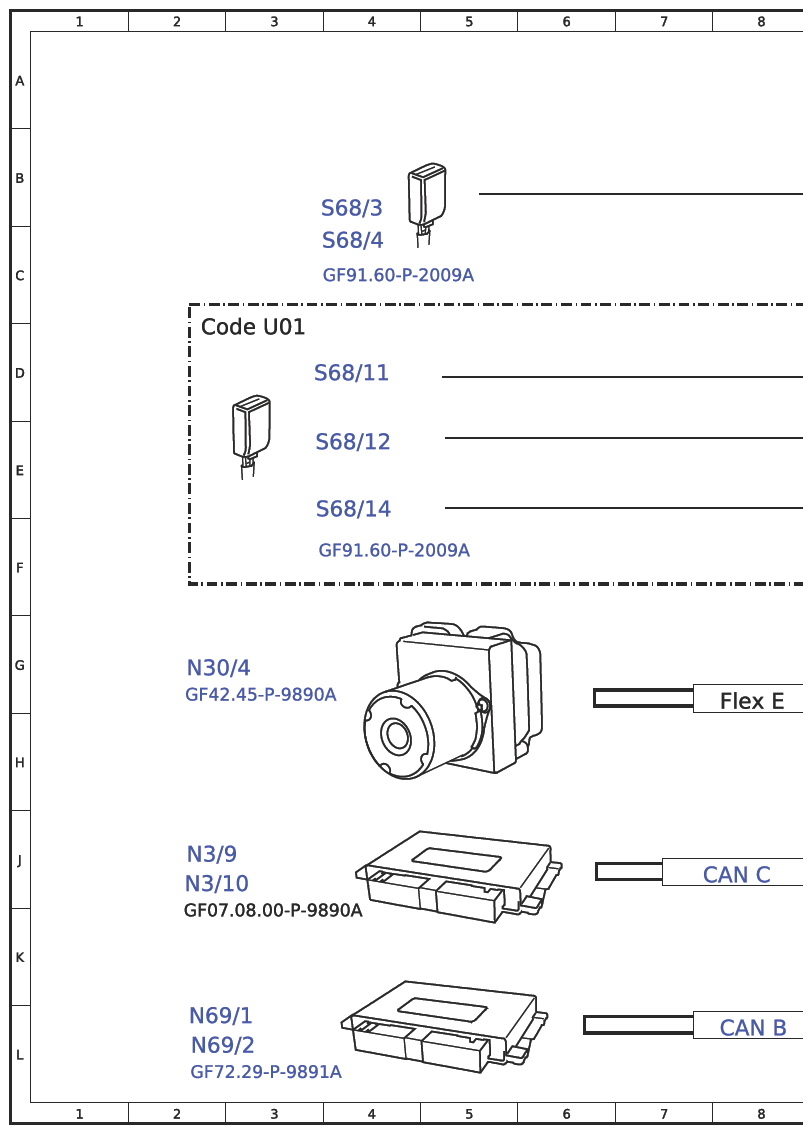

Function Schematic, Output Seat Belt Warning - PE91.60-P-2500-97D
Model 213, 238, 257, 290
as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Switch belt buckle, status | 23F |
| 1 | Switch belt buckle, status | 9B |
| 1 | Switch belt buckle, Status | 15B |
| 1 | Switch belt buckle, status | 15D |
| 1 | Switch belt buckle, status | 9D |
| 1 | Switch belt buckle, Status | 9D |
| 10 | Instrument cluster, message | 29E |
| 2 | Passenger seat occupancy, status | 15B |
| 2 | Seat occupancy of passenger seat, Status | 22F |
| 3 | Vehicle speed, signal | 22F |
| 3 | Vehicle speed, signal | 15G |
| 4 | Engine is running, Signal | 15Y |
| 4 | Motor running, signal | 21F |
| 4 | Motor running, signal | 9J |
| 5 | Drive train ready for operation. Signal | 14Y |
| 5 | Drive train ready for operation. Signal | 21F |
| 6 | Switch rotary latch door, status | 15K |
| 6 | Switch rotary latch door, status | 20F |
| 7 | Terminal 15, Status | 20F |
| 9 | Loudspeakers, control | 29G |
| A40/16 | Head unit/instrument cluster display group | 31F |
| CAN B | Interior CAN | 14L |
| CAN B | Interior CAN | 14E |
| CAN B | Interior CAN | 8L |
| CAN C | Motor CAN | 8J |
| CAN HMI | User interface CAN | 14B |
| CAN HMI2 | User interface CAN 2 | 21F |
| Code U01 | Rear belt status display in the instrument cluster | 2D |
| Flex E | Chassis FlexRay | 14G |
| Flex E | Chassis FlexRay | 14Y |
| Flex E | Chassis FlexRay | 8G |
| H4/61 | Speakers Instrument cluster | 31H |
| HSVL | High speed video link | 28E |
| N10/8 | Rear SAM control unit | 10E |
| N127 | Control unit Drivetrain | 10K |
| N133/1 | Instrument cluster control unit | 24G |
| N2/10 | Supplemental Restraint System control unit | 10C |
| N3/10 | Control unit ME | 2J |
| N3/9 | CDI control unit | 2J |
| N30/4 | Electronic stability program control unit | 2G |
| N69/1 | Left front door control unit | 2L |
| N69/2 | Front door control unit, right | 2L |
| N73 | Electronic control unit Ignition lock | 17G |
| S68/11 | Switch for rear seat belt buckle on the left | 4D |
| S68/12 | Switch for rear seat belt buckle on the right | 4E |
| S68/14 | Rear seat belt buckle switch Middle | 4E |
| S68/3 | Switch seat belt buckle for driver | 4B |
| S68/4 | Switch seat belt buckle for passenger | 4C |
