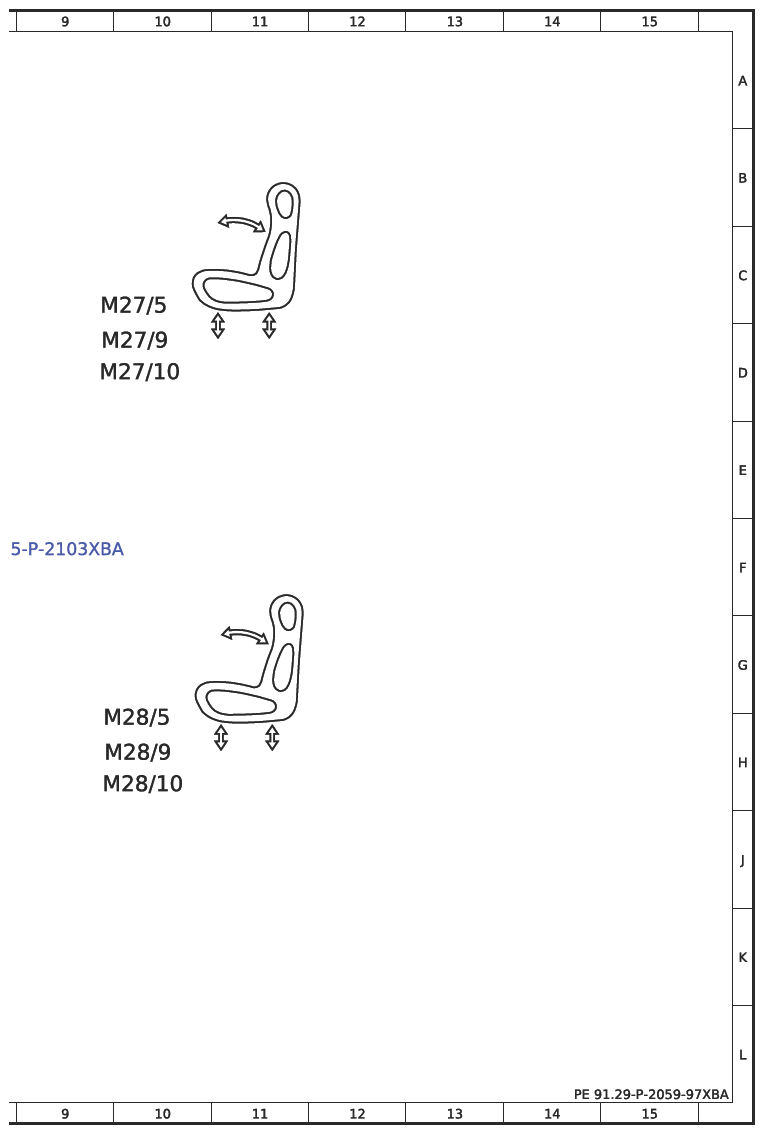

Electrical Function Schematic For Seat Adjustment (ESE) - PE91.29-P-2059-97XBA
Model 257, 290
up to model year 2021
except code 275 (Memory Package (driver's seat, steering column and mirror))
except code 278 (Fully electric front seats)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat adjustment motor, actuation | 7G |
| 1 | Seat adjustment motor, actuation | 7E |
| M27/10 | Driver seat height adjustment motor | 10D |
| M27/5 | Driver seat backrest inclination adjustment motor | 10C |
| M27/9 | Seat inclination adjustment motor, driver seat | 10D |
| M28/10 | Front passenger seat height adjustment motor | 10H |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 10H |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 10H |
| S22/1 | Driver seat partially electric seat adjustment switch | 5E |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 5H |
