Customer Declaration On Replacement Of Front Passenger Seat, Deactivation Of ACSR, SBE, Side Airbag, Form - OF91.00-P-3000-02A
Model All (CAR)
except code 233 (DISTRONIC PLUS incl. BAS Plus and PRE-SAFE® Brake)
In response to a clearly-stated customer request, on........, the function of the side airbag, the automatic child seat recognition (ACSR), and seat occupancy recognition (SBE) has been deactivated on the front passenger side. There is an increased risk of injury for vehicle occupants resulting from this measure. There may, in particular, be
- no activation of the side airbag,
- no automatic deactivation of the front passenger airbag when the front passenger seat is unoccupied,
- no front passenger airbag shutoff despite use of an MB child seat with transponder (automatic shutoff of the front passenger airbag), and
- no 2-stage triggering of the front passenger airbag as a consequence.
This is expressly pointed out to the customer who undertakes likewise to inform other users of the vehicle. The sign "Warning! This vehicle does not have automatic child seat recognition!" has been attached to the right side of the armatures.
Copy sheet, cut off here and stick the upper section into the Operator's Manual at the beginning of the SAFETY chapter.

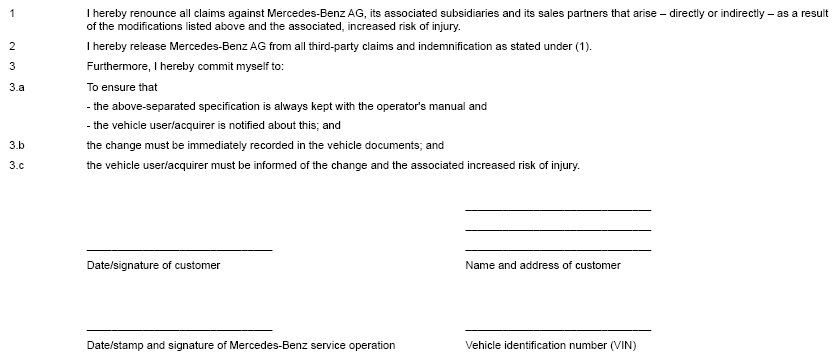

Exclusion of liability, exemption and measures
Process customer request - standard
Deactivation of seat occupancy recognition and automatic child seat recognition
| Customer : | Inquiry |
| Sales | |
| Workshop : | Provide information that decisions are made on an individual case basis Check which version of the customer declaration "Front passenger seat replacement" is relevant Instruct customer about the dangers mentioned in the relevant version of the customer declaration on "Front passenger seat replacement" |
| Customer and workshop : | 1. Fill out the facts form, |
| 2. Fill out customer declaration on front passenger seat replacement | |
| - Leave Date modified blank (important!) | |
| - Customer signature + workshop stamp and signature, | |
| 3. Customer identification | |
| - Copy of the ID | |
| - Copy of the approval certificate | |
| - Copy of disabled ID if a seat for a disabled person is installed | |
| Send completed forms (1 + 2) + copies (3) by fax or email to decision-maker (GSP/TP). | |
| Fax no.: +49 711 30 52 18 28 09 | |
| Email: +497113052182809@ec.fax | |
| Decision-maker (GSP/TPx) : | Archiving faxed or emailed documents (1 - 3) |
| Decision-maker notifying workshop of code(s) and item number of adhesive label "No ACSR" | |
| Workshop : | Attaching "No ACSR" adhesive label to front passenger side of instrument panel |
| Decoding using code | |
| Carefully document in VeDoc (process + person performing task) | |
| Now enter the date on the customer declaration that was previously left blank | |
| Copy the customer declaration | |
| Cut off and stick the upper section of the original into the operator's manual (start of the chapter on Safety) | |
| Sending lower part + copy of entire customer declaration by fax to decision-maker (GSP/TPx) | |
| Now enter in the service booklet | |
| Customer's obligation : Entry in the corresponding vehicle documents (Technical Inspection Association acceptance) | |
| Recommendation to customer : Notify insurance company | |
| Decision-maker (GSP/TP) : | Archiving lower part of original |
| Archive copy of entire customer declaration at decision-maker |
