Unfasten/Fasten Cover For Seat Backrest On Front Seat - AR91.10-P-8656-03LW

Model 205, 238, 253

Model 206, 214, 236, 254

Model 213, 257, 290

Model 223

Model 294, 295, 296, 297

Model 463

as of model year 2019

Model 465

Fastening type A

Courtesy of MERCEDES-BENZ USA

Fastening type B

Courtesy of MERCEDES-BENZ USA

Fastening type C

Courtesy of MERCEDES-BENZ USA

Fastening type D

Courtesy of MERCEDES-BENZ USA

Release

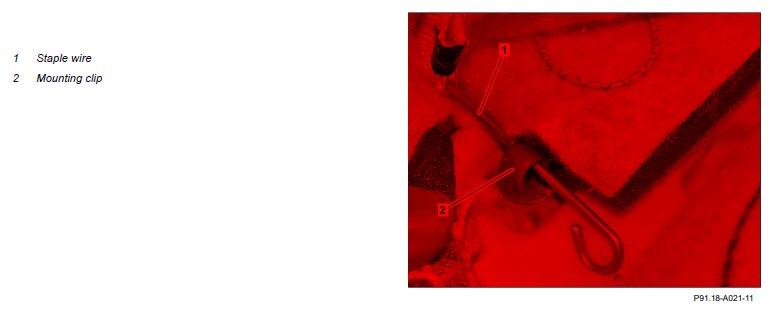

1. Unhook staple wire (1) at retaining clip (2) with dismantling tool.

   For covers with fastening type A

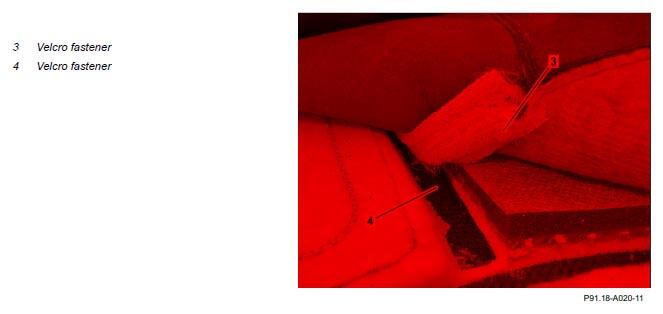

2. Loosen velcro fastener (3) from velcro fastener (4).

   For covers with fastening type B

3. Unhook hook (5) on staple wire (6).

   For covers with fastening type C

4. Remove wire ring (7) on staple wire (8).

   For covers with fastening type D

   Carefully remove residue from wire rings (7).

   Otherwise damage may occur.

   Mount

5. Hook in staple wire (1) at retaining clip (2) with dismantling tool.

   For covers with fastening type A

6. Fasten velcro fastener (3) on velcro fastener (4).

   For covers with fastening type B

7. Hook in hook (5) on staple wire (6).

   For covers with fastening type C

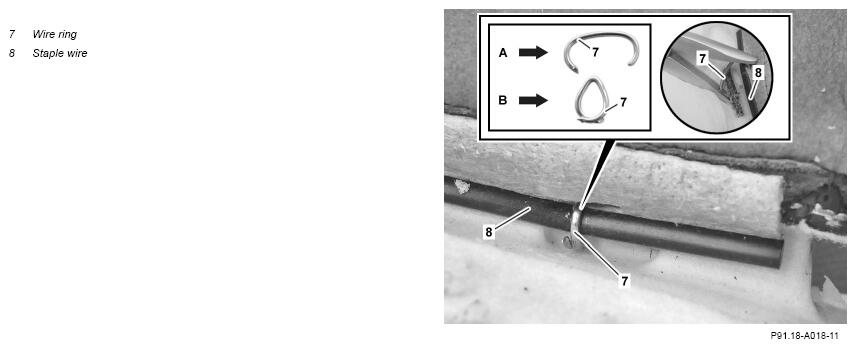

8. Fasten staple wire (8) with wire ring (7) on eyelet of seat backrest padding.

   For covers with fastening type D

   Insert open wire ring (7) (arrow A), as shown, into padding clip pliers and close completely by pressing together (arrow B).
