Remove/Install Seat Ventilation Motors On Front Seat Cushion - AR91.30-P-1952FR
Model 257, 290
with code 401 (Climatised front seats)

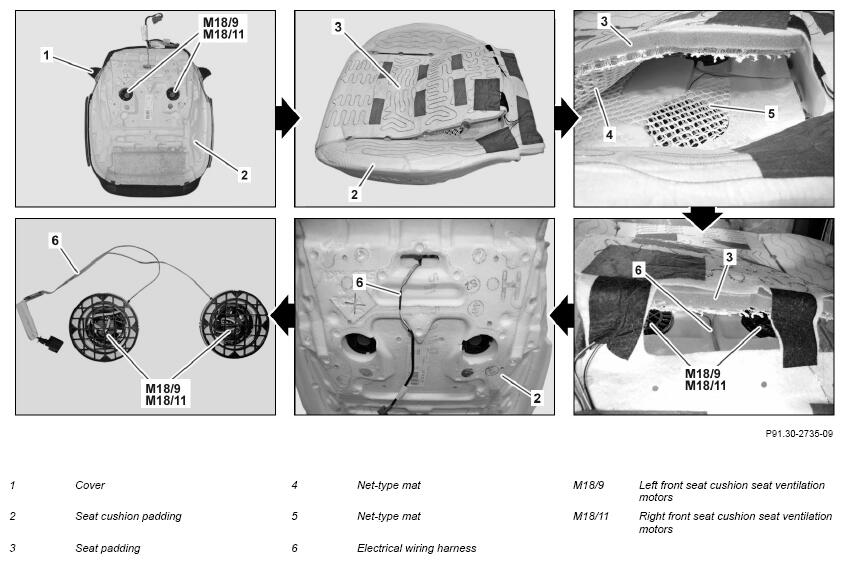

Fig 1: Seat Ventilation Motors On Front Seat Cushion Components Location - Model 290 With Code 401 (Shown On Model 257)
Shown on model 257
| Remove/install | |||
| 1 | Remove cover (1) from seat cushion padding concerned (2). | Remove/install cover (1) on front passenger seat cushion Model 257 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code 401 (Climatised front seats) Model 290 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code 401 (Climatised front seats) except code 555 (AMG Performance seats) |
AR91.18-P-1802FRA |
| Remove/install cover (1) on driver's seat cushion Model 257 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code 401 (Climatised front seats) Model 290 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code 401 (Climatised front seats) except code 555 (AMG Performance seats) |
AR91.18-P-1803FRA | ||
| 2 | Remove seat base (3) with net-type mat (4) in area of front seat cushion seat ventilation motors (M18/9, M18/11) from seat cushion padding (2) as shown. | ||
| 3 | Fold net-type mat (5) to one side. | ||
| 4 | Carefully release front seat cushion seat ventilation motors (M18/9, M18/11) from seat cushion padding (2). | ||
| 5 | Guide electrical wiring harness (6) through seat cushion padding (2). | ||
| 6 | Remove front seat cushion seat ventilation motors (M18/9, M18/11). | ||
| 7 | Install in the reverse order |
