Remove/Install Seat Ventilation Motors On Front Backrest - AR91.30-P-1903FR
Model 257
with code 401 (Climatised front seats)
Model 290
with code 401 (Climatised front seats)
except code 555 (AMG-Performance Seat)

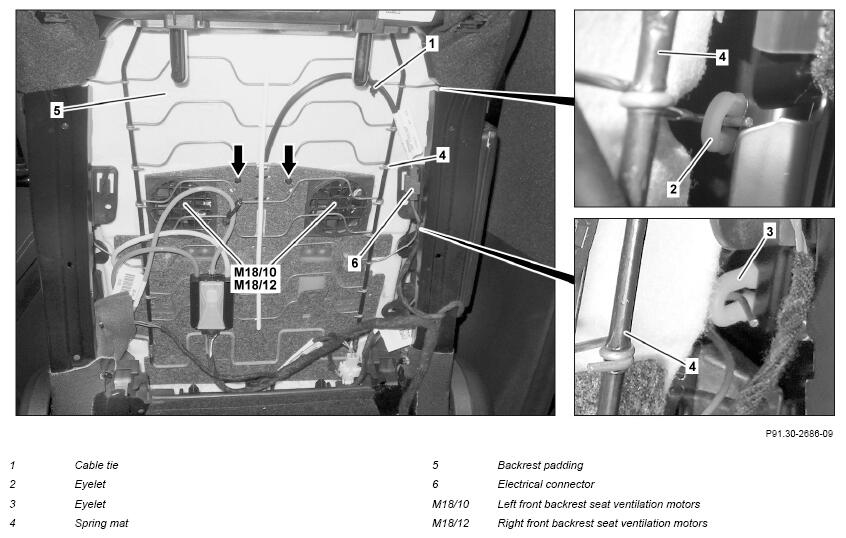

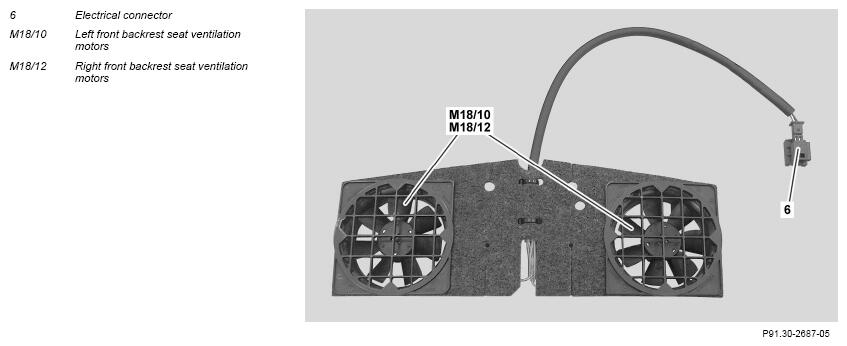

Fig 1: Seat Ventilation Motors On Front Backrest Components Location - Model 290 With Code 401 Except Code 555
| Remove/install | |||
| 1 | Remove seat backrest trim. | AR91.10-P-1912FR | |
| 2 | Remove cable tie (1). | ||
| 3 | Disconnect electrical connection (6). | ||
| 4 | Release plug housing of electrical connector (6) on seat backrest frame and remove. | ||
| 5 | Unhook spring mat (4) on one side from eyelets (2, 3). | ||
| 6 | Unclip front seat backrest seat ventilation motors (M18/10, M18/12) from seat backrest padding (5) (arrows). | ||
| 7 | Lift spring mat (4) and remove front seat backrest seat ventilation motors (M18/10, M18/12). | ||
| 8 | Install in the reverse order |
