Remove/Install Rear Seat Cushion Cover - AR91.18-P-1851FRX

Model 290

with code 568 (3-seater rear bench seat)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove seat cushion in rear passenger compartment.		AR91.12-P-1021FR
2	Unclip ISOFIX covers.	First unclip ISOFIX coverings from the lower brackets, and then guide out of upper brackets.

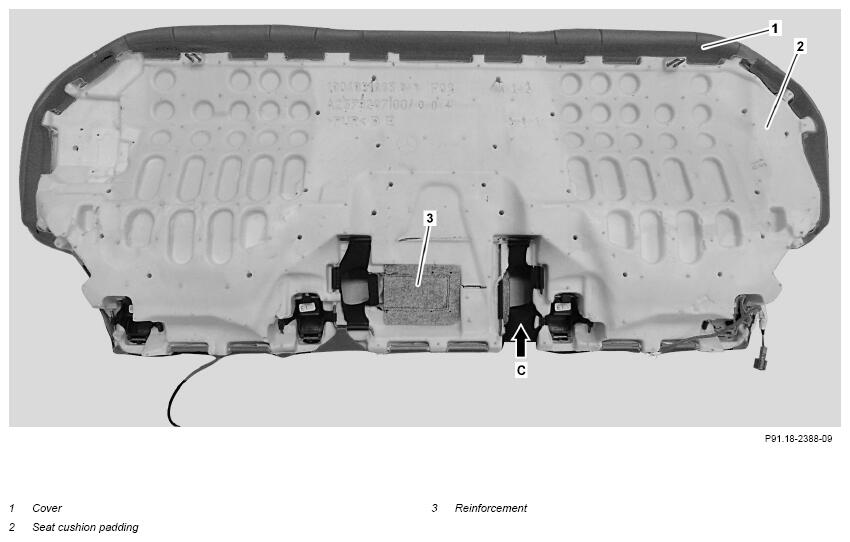

3	Unhook terminal strips of cover (1) all-round from seat cushion padding (2).	Extraction hook	Fig 2
4	Guide cover (1) over formed part (arrow C) of seat cushion padding (2).
5	Guide reinforcement (3) through seat cushion padding (2).
6	Pull cover (1) over seat cushion padding (2).

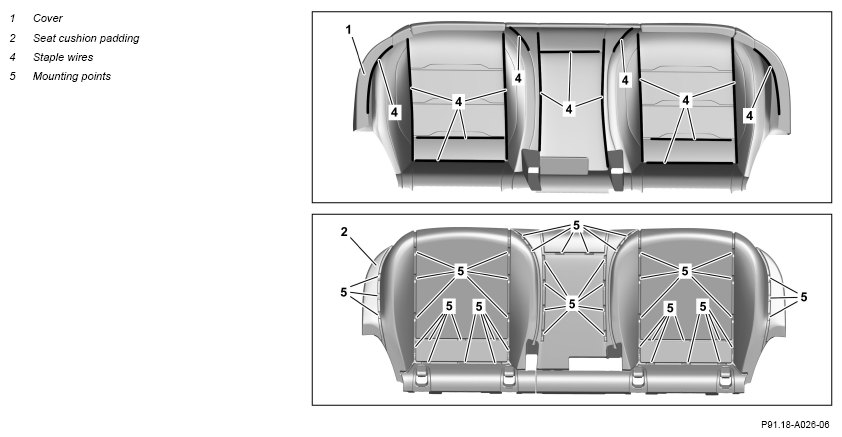

7	Release staple wires (4) at attachment points (5).		AR91.18-P-1851-01FRX
		Padding clip pliers	Fig 3
		Dismantling tool	Fig 1
8	Remove cover (1) from seat cushion padding (2).
	Install
9	Align cover (1) over seat cushion padding (2) so that the seams locate in the notches of the seat cushion padding (2).
10	Fasten staple wires (4) at attachment points (5).		AR91.18-P-1851-01FRX
		Padding clip pliers	Fig 3
		Dismantling tool	Fig 1
11	Pull cover (1) over seat cushion padding (2).
12	Guide reinforcement (3) through seat cushion padding (2) and fix in place.
13	Slip cover (1) over formed part (arrow C) of seat cushion padding (2).
14	Hook terminal strips of cover (1) all-round into seat cushion padding (2).	Extraction hook	Fig 2
15	Clip-in ISOFIX covers.
16	Install seat cushion in rear.		AR91.12-P-1021FR

Fig 1: Identifying Dismantling Tool (205 589 03 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Padding Clip Pliers (454 589 03 37 00)

Courtesy of MERCEDES-BENZ USA
