Remove/Install Heat Mat On Driver Seat Cushion - AR91.30-P-0015FR
Model 257, 290
with code 401 (Climatised front seats)
Model 257, 290
with code 873 (Left and right driver's seat heating)
Model 257, 290
with code 902 (Seat heater Plus for driver and front passenger)

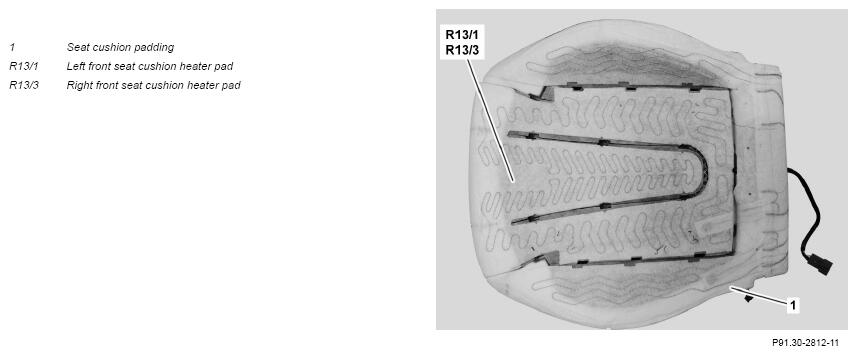

Shown on model 257 with code (Seat heating for driver and front passenger)
| Remove/install | |||
| 1 | Remove cover from driver's seat cushion padding. | Model 257 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code 401 (Climatised front seats) Model 257 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code 873 (Left and right driver's seat heating) Model 257 with code 275 (Memory Package (driver's seat, steering column and mirror)) with code 902 (Seat heater Plus for driver and front passenger) |
AR91.18-P-1803FRA |
| Model 257 with code 401 (Climatised front seats) except code 275 (Memory Package (driver's seat, steering column and mirror)) Model 257 with code 873 (Left and right driver's seat heating) except code 275 (Memory Package (driver's seat, steering column and mirror)) Model 257 with code 902 (Seat heater Plus for driver and front passenger) except code 275 (Memory Package (driver's seat, steering column and mirror)) |
AR91.18-P-1803FR | ||
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| 2 | Warm front seat sitting surface heater pad (R13/1, R13/3) and carefully remove from seat cushion padding (1). | ||
| 000 588 15 84 00 Heat gun | Do not exceed temperatures of 60°C. Otherwise the structure of the seat cushion padding (1) changes. |
WS54.00-P-0125B | |
| 3 | Guide electrical wiring harness of front seat sitting surface heater pad (R13/1, R13/3) through seat cushion padding (1). | ||
| 4 | Install in the reverse order. |
