Remove/Install Driver Knee Airbag - AR91.60-P-0200FR
Model 257, 290
Shown on model 257
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic | AH54.00-P-0001-01A | |
| components due to electrostatic discharge | |||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Adjust steering column upward. | ||
| 2 | Adjust driver seat to the rear. | ||
| 3 | Disconnect ground line from battery. | AR54.10-P-0003FR | |
| 4 | Detach trim under driver-side instrument panel far enough to enable the driver knee airbag (3) to be removed. | AR68.10-P-1501FR | |

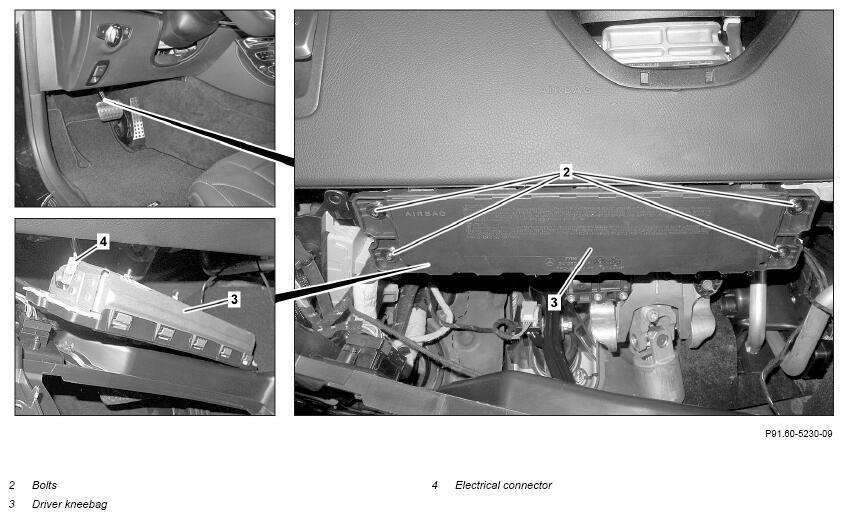

| 5 | Remove screws (2) and lower driver knee airbag (3) until electrical connector (4) is accessible. | *BA91.60-P-1003-01O | |
| 6 | Release and disconnect electrical connector (4). | Fig 2 | |
| 7 | Remove driver knee airbag (3). | ||
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | When replacing driver knee airbag (3). | |
| AD00.00-P-2000-06FR |
AIRBAG
| Number | Designation | Model 257 | Model 290 | |
|---|---|---|---|---|
| BA91.60-P-1003-01O | Bolt, knee airbag to crossmember | Nm | 5 | 5 |
