Remove/Install Cover On Front Passenger Seat Cushion - AR91.18-P-1802FRX
Model 213, 290
with code 555 (AMG-Performance Seat)
except code U10 (Front passenger seat with weight sensor)
Shown on model 213 with code 873 (Seat heating for driver and front passenger)
| Remove | |||
| 1 | Remove seat cushion padding (2). | AR91.10-P-5040FRX | |

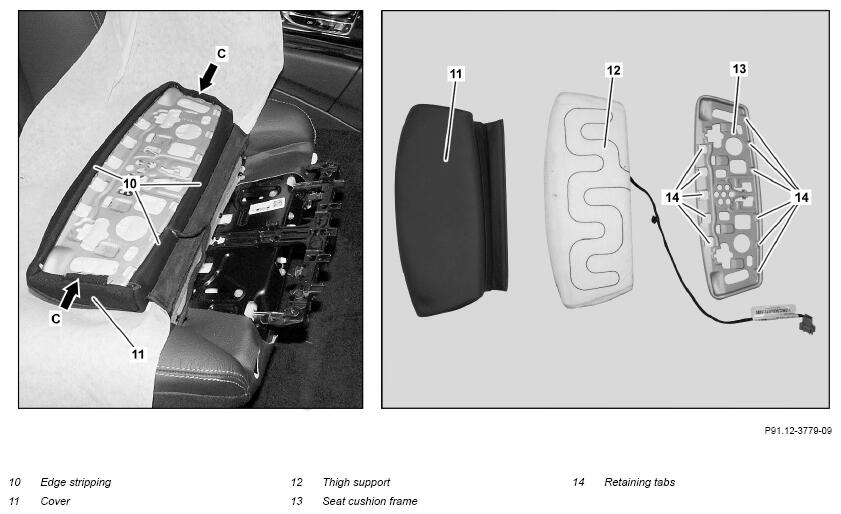

| 2 | Unhook cover (11) at side (arrows C). | ||
| 3 | Push retaining tabs (14) to one side and unhook piping (10). | Fig 1 | |
| 4 | Remove seat cushion frame (13) from thigh rest (12) and cover (11). | ||
| 5 | Remove thigh rest (12) from cover (11). | ||
| 6 | Pull cover (1) over seat cushion padding (2). | ||

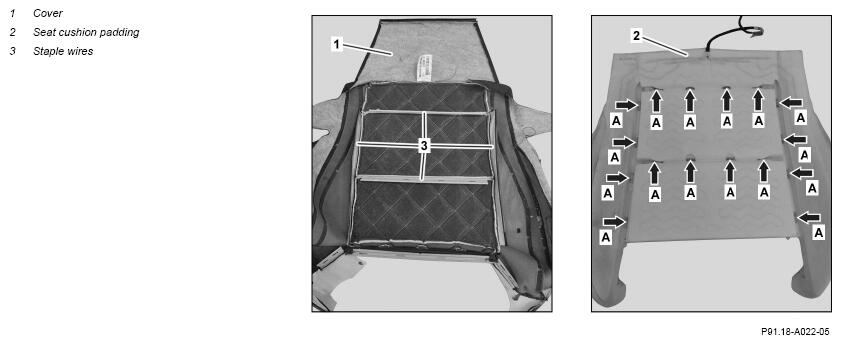

| 7 | Detach staple wires (3) from attachment points (arrows A) of seat cushion padding (2). | AR91.18-P-1802-01LW | |
| Fig 3 | |||
| Fig 2 | |||
| 8 | Remove cover (1) from seat cushion padding (2). | ||
| Install | |||
| 9 | Align cover (1) over seat cushion padding (2) so that the seams locate in the notches of the seat cushion padding (2). | ||
| 10 | Secure staple wires (3) to attachment points (arrows A) of seat cushion padding. | AR91.18-P-1802-01LW | |
| Fig 3 | |||
| Fig 2 | |||
| 11 | Pull cover (1) over seat cushion padding (2). | ||
| 12 | Insert thigh rest (12) into cover (11) and smooth out creases in cover (11). | ||
| 13 | Insert seat cushion frame (13) into cover (11) and align centrally using a mark on cover (11) as well as contour of thigh rest (12). | ||
| 14 | Hook in piping (10) and fix in place with retaining tabs (14). | Fig 1 | |
| 15 | Hook in cover (11) at side. | ||
| 16 | Install seat cushion padding (2). | AR91.10-P-5040FRX |
