Remove Rear Head Restraint - AR91.16-P-1770FRX
Model 290
with code 287 (Through-loading feature)
Shown with code 568 (3-seat rear bench seat)
Shown with code 568 (3-seat rear bench seat)
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||

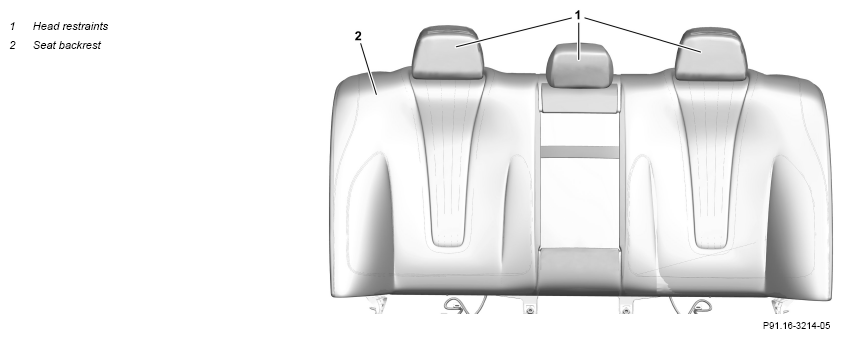

| 1 | Release left or right seat backrest (2) and fold far enough forward until the corresponding head restraint (1) can be removed. | ||
| 2 | Remove trim (6) behind armrest (5). | Model 290 with code 287 (Through-loading feature) except code 224 (Rear individual seat design) | |
| When removing center head restraint (1). | |||
| AR91.12-P-1744FR | |||

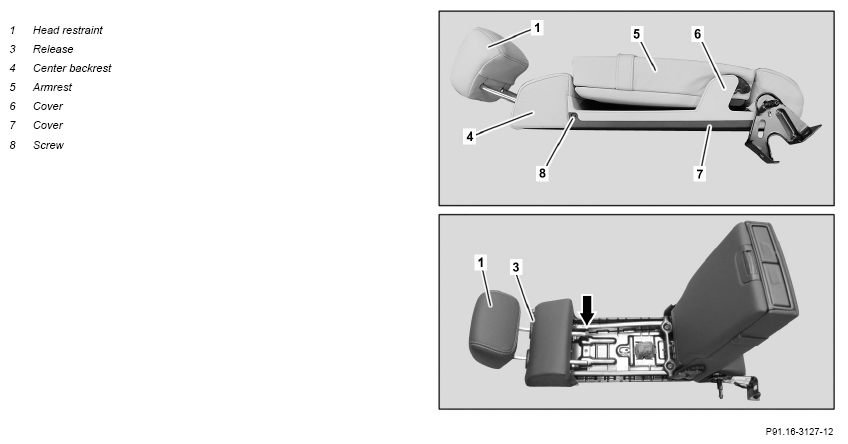

| 3 | Remove retaining clip (arrow) of head restraint (1). | Model 290 with code 287 (Through-loading feature) except code 224 (Rear individual seat design) When removing center head restraint (1). |
|
| 4 | Operate release (3) and pull head restraint (1) out of head restraint guides. | ||
| 5 | Install in the reverse order |
