Remove/Install Condenser - AR83.30-P-6540FRX
Model 290 with engine 177

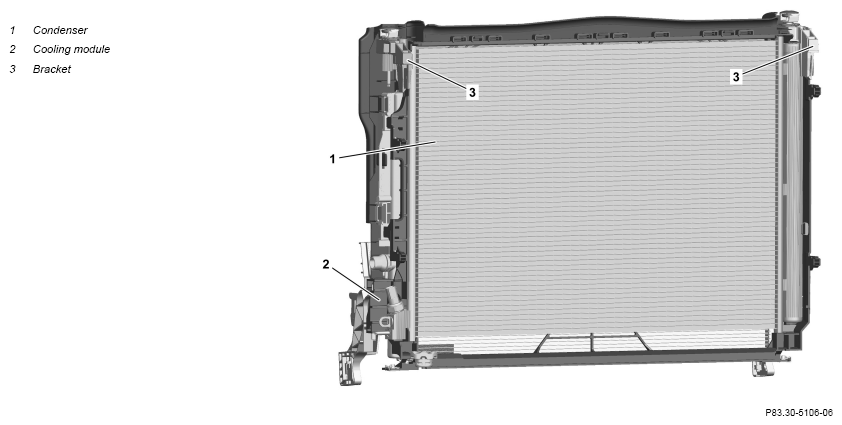

Shown without code ME10 (hybrid vehicle (plug-in, PHEV))

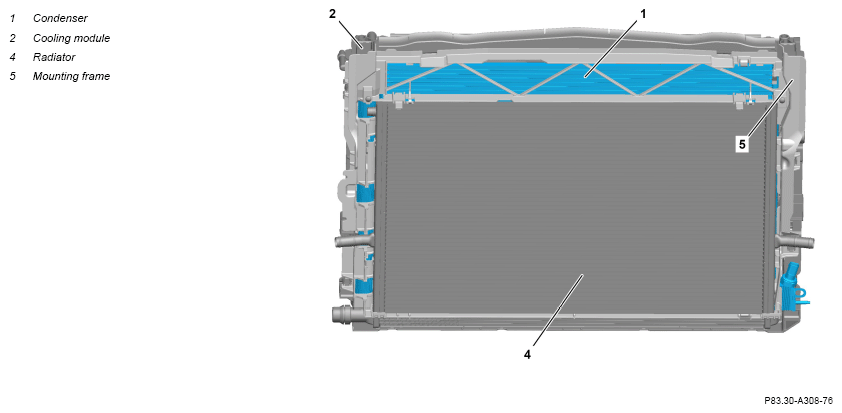

Shown with code ME10 (hybrid vehicle (plug-in, PHEV))
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0007-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on handling refrigerant R1234yf | AH83.30-P-0003-02A | ||
| Remove/install | |||
| 1 | Unclip cooler from cooling module (2) and remove it. | AR20.20-P-3865MNI | |
| 2.1 | Remove brackets (3). | Model 290 with engine 177 except code ME10 (Hybrid vehicle (plug-in, PHEV)) |
|
| 2.2 | Remove mounting frame (5) together with cooler (4) and capacitor (1) from cooling module (2) and place on a suitable base. | Model 290 with engine 177 with code ME10 (Hybrid vehicle (plug-in, PHEV)) |
|
| 3.1 | Remove condenser (1) from cooling module (2). | Model 290 with engine 177 except code ME10 (Hybrid vehicle (plug-in, PHEV)) |
|
| 3.2 | Remove capacitor (1) from mounting frame (5). | Model 290 with engine 177 with code ME10 (Hybrid vehicle (plug-in, PHEV)) |
|
| 4 | Check condenser (1) for damage. | If damage occurs, ↓ Replace condenser (1). |
|
| 5 | Install in the reverse order. |
