Climate Control, Control Unit, Basic Function - GF83.40-P-9890A
Model 167, 293
Model 213, 238, 257, 290 as of model year 2021

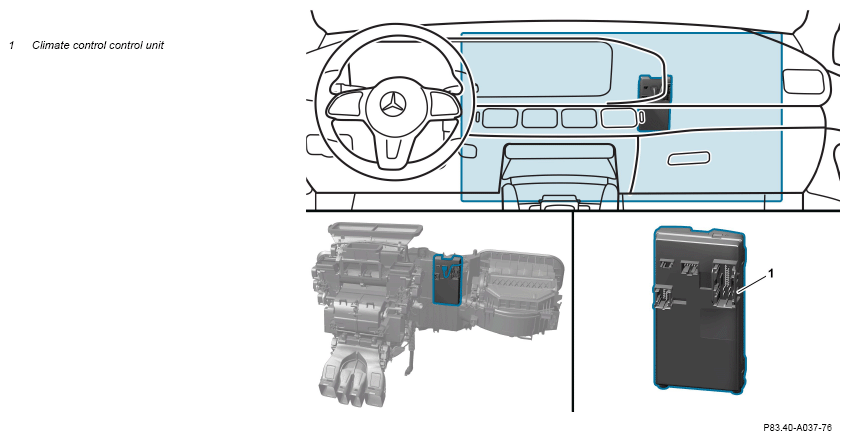

Example illustration of control unit for climate control
Overview
This document contains information on:
- General
- Function requirements
- Function
General
The control unit for climate control (1) regulates the temperature and the air distribution in the vehicle interior. The regulation for this is dependent on the implemented settings and the recorded variables of the various sensors.
The climate control control unit (1) is located behind the glove compartment in the instrument panel.
Function requirements
- Circuit 30t ON
Function
The tasks of the control unit for climate control (1) include:
- Adaptation of the air temperature (heating/cooling)
- Air dehumidification
- Blower control
- Improving the air quality (depending on the equipment)
