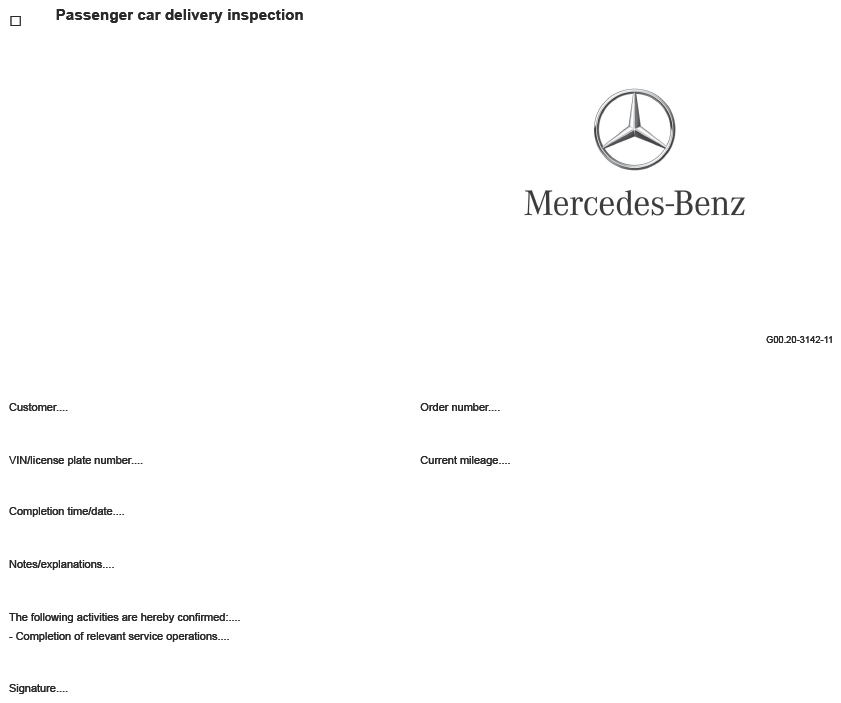

Perform Delivery Check For New Vehicles - AP00.20-P-1101A
Model 117, 118, 156, 166, 167, 172, 176, 177, 205, 213, 217, 222, 231, 238, 243, 247, 253, 257, 290, 292, 293, 461, 463
| Completed | Input condition not OK: | ⓧ | ||
|---|---|---|---|---|
| [X] | ||||
| Vehicle exterior, body | ||||
| □ | Check windows, paint, chrome parts and plastic parts for shipping damage. | ◦ | ||
| □ | Check condition of vehicle underside in front and rear area for shipping damage. | ◦ | ||
| □ | Check condition of vehicle underside in area of high-voltage battery as well as front and rear underbody paneling for damage. | Model 293 Swiveling underbody inspection mirror with illumination. If problems are determined, ↓ Place vehicle on vehicle lift and check problems again. |
◦ | |
| Tires, wheels | ||||
| □ | Check tires and rims for shipping damage. | ◦ | ||
| Vehicle interior | ||||
| □ | Check vehicle interior for damage and condition. | ◦ | ||
| □ | Check charge level of high-voltage battery. | Model 118.385/386/685/686, 177.085/086/185/186, 247.085/086/785/786 Model 166.063, 205.013/047/053/054/147/213/247/253, 213.011/016/050/053/054/153/155/211/216/253, 222.163/173, 253.311/353/354/911/953/954 Model 167 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Model 167 with code ME10 (Hybrid vehicle (plug-in, PHEV)) Model 205.012/212, 222.004/057/104/157 Model 243, 253.99, 290.679, 293 |
SI54.10-P-0024A | |
| □ | Check navigation system for completeness. | ◦ | ||
| Miscellaneous | ||||
| □ | Enter any other faults into table. | |||
MISCELLANEOUS
| 1) |
| 2) |
| 3) |
