Confirm Vehicle Handover - AP00.20-P-0146A

Model 118, 167, 177, 243, 247 with code 521 (Connect 20 Mid (NTG7))

Model 118, 167, 177, 243, 247 with code 525 (Connect 20 High (NTG7))

Model 192, 206, 214, 223, 232, 236, 254, 294, 295, 296, 297

Model 213 except code 800 (Model year 2020) except code 806 (Model year 2016) except code 807 (Model year 2017) except code 808 (Model year 2018) except code 809 (Model year 2019)

Model 238 except code 800 (Model year 2020) except code 807 (Model year 2017) except code 808 (Model year 2018) except code 809 (Model year 2019)

Model 257 except code 800 (Model year 2020) except code 801 (YoM 20/1) except code 808 (Model year 2018) except code 809 (Model year 2019)

Model 290 except code 800 (Model year 2020) except code 801 (YoM 20/1) except code 809 (Model year 2019)

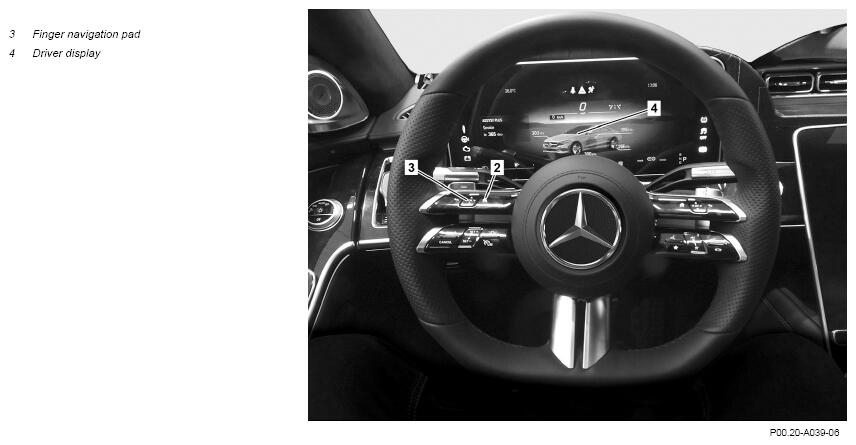

Shown on model 223.163

Courtesy of MERCEDES-BENZ USA

	Dialing
1	Call up workshop level in instrument cluster.		AP00.20-P-0149U
2	Switch electronic ignition lock control unit to position "2" (circuit 15).	No fault messages may be shown on the driver's display (4).
3	Use swipe movements on the finger navigation pad (3) to select and confirm the "ASSYST PLUS" menu item on the driver's display (4).	The following panel appears in the driver display (4): "Vehicle handover".
	Confirm vehicle handover
4	Use swipe movements on finger navigation pad (3) to select and confirm "Vehicle handover" menu item in driver display (4).
5	Use swipe movements on the finger navigation pad (3) to select and confirm the "Yes" menu item on the driver's display (4).	The tabs are shown on the driver's display (4): "Service data", "Full service".
	Deactivation
6	Close workshop level on instrument cluster.		AP00.20-P-0149U
