Check Main Circuit Coolant Level - AP20.30-P-2050L
Engine 177, 256.9 in model 290

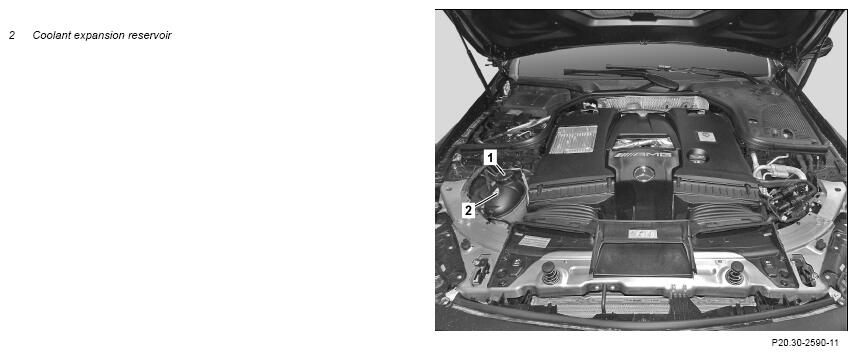

Shown on engine 177 in model 290
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Check | |||
| 1 | Check coolant level in light-dark boundary area of coolant expansion reservoir (2). | If the coolant level is above the light-dark boundary, ↓ Coolant level correct, check complete, no further operations steps necessary. If the coolant level is below the light-dark boundary, ↓ Check cooling system for leaktightness and coolant for antifreeze content. Coolant specifications |
BB00.40-P-0310-01A |
